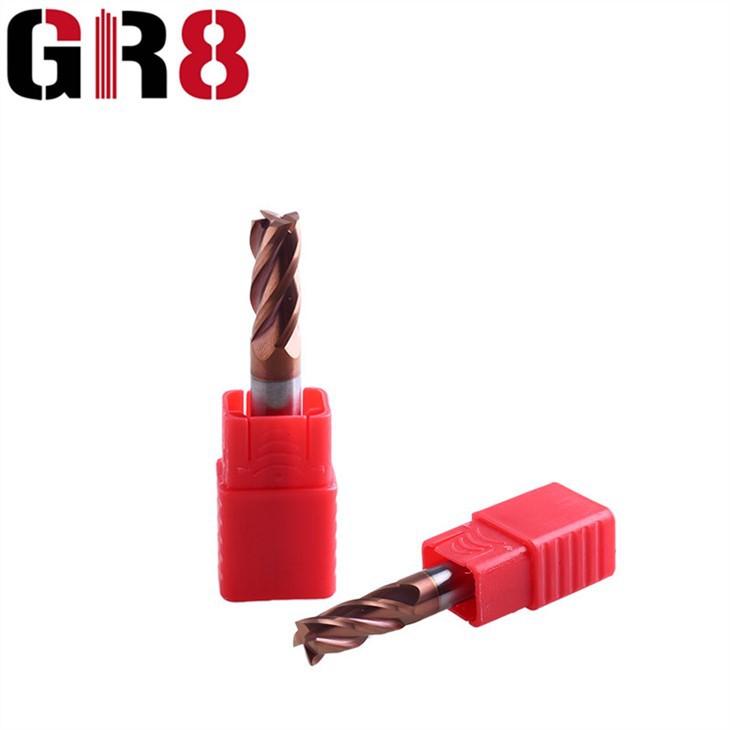

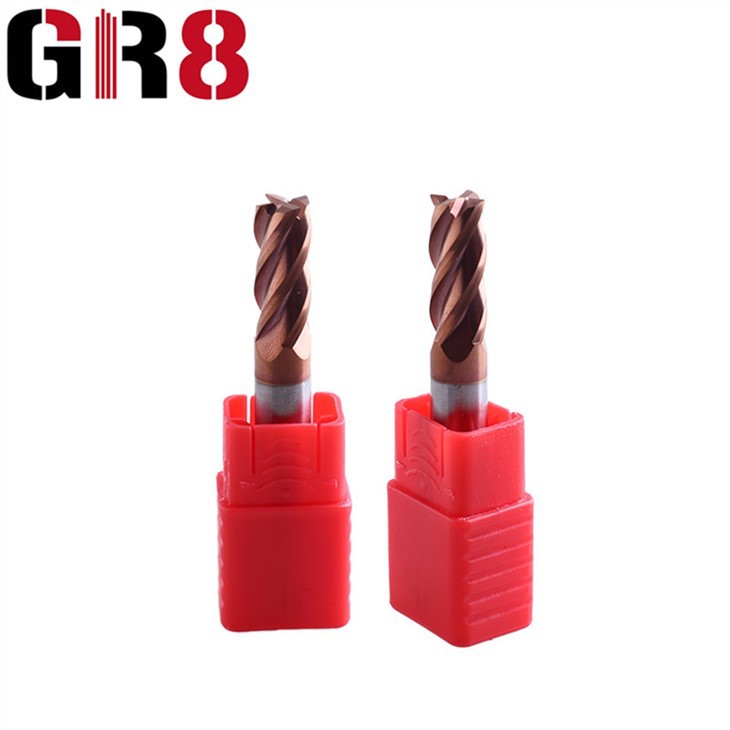

55HRC 4 Flutes Flat End Zeb

Qhov no 55HRC 4 flutes tiaj tus kawg zeb muaj plaub flutes yog li nws ua kom cov txiav du thiab zoo heev nti khiav tawm. Raws li lub tiaj kawg zeb, nws yog qhov zoo tagnrho rau machining flats, slots thiab keyways. Nws txoj kab uas hla yog li ntawm 1mm txog 20mm, thiab txiav ntug ntev li ntawm 2mm mus rau 50mm, yog li koj tuaj yeem xaiv qhov tsim nyog raws li koj daim ntawv thov tshwj xeeb. Cov khoom no muaj ntau yam zoo. Ua ntej, nws muaj lub siab tawv ntawm 55HRC, uas ua rau nws tsim nyog rau kev txiav ntau yam ntaub ntawv, xws li stainless hlau, hlau alloy, cam khwb cia hlau thiab tooj liab. Qhov thib ob, qhov kawg zeb no muaj lub neej ntev raws li nws yog ua los ntawm cov khoom siv hlau zoo, uas txhais tau hais tias nws tuaj yeem ua haujlwm ntau ntawm kev txiav thaum lub sijhawm nws lub neej. Thib peb, ua tsaug rau kev tsim ntawm ntug tiaj tiaj, cov cuab yeej no muaj kev ua haujlwm zoo heev, kev ua haujlwm siab thiab kev siv hluav taws xob tsawg. Qhov zoo tshaj plaws, nws yooj yim heev rau siv thiab tswj, ua rau nws zoo meej rau cov neeg pib tshiab thiab cov kws paub txog kev siv tshuab zoo ib yam. Order tam sim no!



Khoom zoo

1. Lub tiaj tiaj zeb kawg no tau coated zoo kom nws hnav tsis kam thiab corrosion kuj tau zoo dua qub, uas txhais tau tias nws tuaj yeem muab kev pabcuam ntev dua.

2. Lub zeb no muaj qhov zoo tshaj plaws txiav nto nrog cov geometry ruaj khov thiab tswj tau qhov tseeb, yog li nws tuaj yeem lav cov khoom ua tiav nrog kev ua haujlwm siab thiab ua haujlwm siab.

3. Qhov no 55HRC 4-flute ca kawg zeb yog tsim rau ntau yam kev siv xws li milling, drilling thiab profileing. Nws tuaj yeem ua lub luag haujlwm tseem ceeb hauv kev lag luam xws li aerospace, automotive, kev kho mob thiab pwm ua uas yuav tsum tau txiav txim siab.

4. Tus nqi ntawm qhov no55 ZPO 4flutes flat kawg millyog kev sib tw heev. Ntxiv mus, nws tuaj yeem siv dav hauv machining cov cuab yeej xws li CNC lathes, machining chaw, tig thiab milling tshuab, CNC gantry machining chaw, thiab lwm yam, yog li nws muaj txiaj ntsig zoo rau kev lag luam.



Spotlight Exhibits





Hoobkas





Product Description



55HRC 4 Flutes Cemented Carbide Square End Zeb nrog Txheej





SPECIFICATION	d1	L1	D	L
D1*3*D4*50L	1 hli	3mm ib	4mm ib	50 hli
D1.5*4.5*D4*50L	1.5 hli	4.5mm ib	4mm ib	50 hli
D2*6*D4*50L	2 hli	6mm ib	4mm ib	50 hli
D2.5*7.5*D4*50L	2.5 hli	7.5mm ib	4mm ib	50 hli
D3*9*D4*50L	3mm ib	9mm ib	4mm ib	50 hli
D3.5*10*D4*50L	3.5mm ib	10 hli	4mm ib	50 hli
D4*12*D4*50L	4mm ib	12 hli	4mm ib	50 hli
D4*16*D4*75L	4mm ib	16 hli	4mm ib	75mm ua
D4*20*D4*100L	4mm ib	20 hli	4mm ib	100 hli
D5*15*D5*50L	5mm ua	15 hli	5mm ua	50 hli
D5*20*D5*75L	5mm ua	20 hli	5mm ua	75mm ua
D5*25*D5*100L	5mm ua	25 hli	5mm ua	100 hli
D6*18*D6*50L	6mm ib	18 hli	6mm ib	50 hli
D6*24*D6*75L	6mm ib	24mm ib	6mm ib	75mm ua
D6*30*D6*100L	6mm ib	30 hli	6mm ib	100 hli
D8*24*D8*60L	8mm ib	24mm ib	8mm ib	60 hli
D8*30*D8*75L	8mm ib	30 hli	8mm ib	75mm ua
D8*35*D8*100L	8mm ib	35mm ib	8mm ib	100 hli
D10*30*D10*75L	10 hli	30 hli	10 hli	75mm ua
D10*45*D10*100L	10 hli	45mm ib	10 hli	100 hli
D12*35*D12*75L	12 hli	35mm ib	12 hli	75mm ua
D12*45*D12*100L	12 hli	45mm ib	12 hli	100 hli
D14*45*D14*100L	14mm ib	45mm ib	14mm ib	100 hli
D16*45*D16*100L	16 hli	45mm ib	16 hli	100 hli
D18*45*D18*100L	18 hli	45mm ib	18 hli	100 hli
D20*45*D20*100L	20 hli	45mm ib	20 hli	100 hli
D6*45*D6*150L	6mm ib	45mm ib	6mm ib	150 hli
D8*50*D8*150L	8mm ib	50 hli	8mm ib	150 hli
D10*60*D10*150L	10 hli	60 hli	10 hli	150 hli
D12*60*D12*150L	12 hli	60 hli	12 hli	150 hli
D14*70*D14*150L	14mm ib	70 hli	14mm ib	150 hli
D16*75*D16*150L	16 hli	75mm ua	16 hli	150 hli
D18*75*D18*150L	18 hli	75mm ua	18 hli	150 hli
D20*75*D20*150L	20 hli	75mm ua	20 hli	150 hli



Tolerances
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045



Daim ntawv thov
Carbon Steel Hlau alloy	Pre-harden steel	High-hardened				Stainless hlau	Tooj Alloy	Aluminium Alloy
	45 HRC	50 HRC	55 HRC	60 HRC	65 HRC
○	○	√	√			○	○	○



Pom zoo Parameters



Khoom siv	Carbon Steel, Alloy Steel, S45C, FC, FCD, SCM, S50C, SKS ...		Alloy Steel, Tool Steel SCR, SNCM, SKD11, SKD61.NAK80		Hard Steel, SKD11
Hardness	HRC 30		HRC 50		HRC 60
Txoj kab uas hla	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)
1 hli	22000	400	18000	200	9000	140
1.5 hli	12000	500	11000	280	5200	150
2 hli	10000	550	10000	280	4600	170
3mm ib	9000	600	5500	310	3500	220
4mm ib	6000	750	5000	400	2200	220
5mm ua	4800	800	4000	400	1700	240
6mm ib	4500	820	3800	420	1600	300
8mm ib	3500	820	2800	420	1000	300
10 hli	3000	820	1800	420	900	300
12 hli	2000	820	1600	350	800	300
16 hli	1500	650	1000	300	500	150
20 hli	1200	650	900	300	400	150





Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO BLACK
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)



Cov duab ntxaws





4 Flutes square milling cutter	4 Flutes square Carbide cutter	4 Flutes square kawg zeb





Peb Qhov Zoo



Customized--Peb yog cov chaw tsim khoom! qauv & OEM & ODM muaj!

Kev nyab xeeb--Peb muaj daim ntawv ntsuam xyuas tus kheej, tag nrho peb cov khoom tau raug kuaj nruj me ntsis hauv lub hoobkas.

Daim ntawv pov thawj--Peb muaj CE thiab cov ntawv pov thawj zoo.

High Quality --Peb lub tuam txhab siv cov cuab yeej siv siab tshaj plaws los ua cov khoom zoo tshaj plaws.





Ntim





FAQ



1. Q: Koj puas yog cov chaw tsim khoom, tuam txhab lag luam lossis lwm tus neeg sab nrauv?

A: Peb yog cov chaw tsim khoom



2. Q: Koj qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi, koj puas tuaj yeem xa tuaj rau kuv kuaj?

A: Peb qhov tsawg kawg nkaus kom muaj nuj nqis yog 1 teeb, raws li peb cov khoom yog cov cuab yeej siv tshuab, nws nyuaj rau xa koj cov qauv, txawm li cas los xij, peb tuaj yeem xa koj cov catalog, zoo siab tos txais koj tuaj xyuas peb lub tuam txhab.



3. Q: Koj cov khoom zoo li cas?

A: Peb tau txais CE, ISO, SGS, TUV, SONCAP daim ntawv pov thawj txog tam sim no.



4. Q: Lub sijhawm khoom xa tuaj ntawm koj lub tshuab yog dab tsi?

A: Feem ntau, lub sijhawm xa khoom ntawm peb lub tshuab yog li 30 hnub, lub tshuab customized yuav raug xa raws li kev sib tham nrog peb cov neeg siv khoom.



5. Q: Lub tshuab puas tuaj yeem hloov kho raws li peb xav tau, xws li muab tso rau ntawm peb lub logo?

A: Muaj tseeb peb lub tshuab tuaj yeem kho raws li koj xav tau, Muab tso rau ntawm koj lub logo kuj muaj.
