1 Flutes Aluminium Processing End Mill

Spotlight Exhibits

Kev piav qhia

Hauv niaj hnub architecture thiab kev tsim khoom, cov cuab yeej siv tau zoo thiab raug yog tus yuam sij kom ua tiav qhov zoo tshaj plaws. Txhawm rau ua kom tau raws li koj xav tau hauv kev ua haujlwm ntawm aluminium qhov rooj thiab qhov rais, qhov no 1 Flutes Aluminium Processing End Mill yog tshwj xeeb uas tsim los rau kev ua haujlwm siab thiab tshem tawm cov khoom loj, uas tuaj yeem paub txog kev txiav zoo thiab raug. Nws yog ntsug milling cutter nrog ib tug ntse zawj, tshwj xeeb tshaj yog tsim los txiav aluminium qhov rooj thiab qhov rais zoo thiab raug. Qhov kev tsim no ua rau kev txiav ntau dua, tuaj yeem txiav aluminium qhov rooj thiab qhov rais zoo, thiab ua kom qhov tseeb thiab ruaj khov ntawm kev ua haujlwm. Tsis tas li ntawd, nws cov geometry thiab cov nti loj channel tuaj yeem tshem tawm cov chips zoo, yog li ua tiav cov khoom noj ceev dua thiab lub sijhawm luv luv.



Nta

1. DLC coating: This 1 Flutes Aluminum Processing End Mill has DLC coating, which can provide high hardness (>＞HV1500) thiab txo cov kev sib txhuam qhuav coefficient (0. lub neej ntawm lub cuab yeej.



2. Muaj ntau qhov ntau thiab tsawg: nws muab ntau txoj kab uas hla kom tau raws li cov kev xav tau sib txawv. Koj tuaj yeem xaiv cov cuab yeej tsim nyog raws li cov qauv ntawm lub qhov rooj thiab qhov rais thiab kev ua haujlwm.



3. Kev tshem tawm cov nti zoo heev: Lub milling cutter muaj kev ua haujlwm zoo heev nti tshem tawm, thiab cov chips tsim nyob rau hauv cov txheej txheem txiav tuaj yeem raug tshem tawm sai sai kom tsis txhob txiav kev cuam tshuam thiab cov teeb meem machining.



4. Txo cov cua sov tsim: nws cov qauv tsim yooj yim thiab txheej txheej ua kom cov cua sov tsim hauv cov txheej txheem txiav tsawg dua, txo qhov nce ntawm kev ua haujlwm kub thiab ua rau nws cov kev pab cuam lub neej ntev dua.



Daim ntawv thov



• Aluminium qhov rooj thiab qhov rais ua: 1 Flutes Aluminium Processing End Mill muaj kev ua tau zoo hauv kev ua haujlwm ntawm txhuas qhov rooj thiab qhov rais. Nws ib qho zawj tsim thiab DLC txheej tuaj yeem txiav aluminium qhov rooj thiab qhov rai profiles tau zoo thiab raug, ua rau kev ua haujlwm sai dua thiab raug dua.

• Aluminium profile ua: Ntxiv rau qhov rooj thiab qhov rais, cov cuab yeej no kuj tsim nyog rau kev ua txhuas profile. Nws tuaj yeem paub qhov nyuaj contour txiav thiab muab cov kev daws teeb meem zoo rau koj cov kev ua haujlwm txhuas profile.

• Kev tsim kho thiab kev tsim khoom: Hauv kev tsim kho thiab kev tsim khoom, nws tuaj yeem muaj peev xwm rau txhua yam kev ua haujlwm ntawm txhuas thiab muab kev txhawb nqa rau koj cov khoom.





Hoobkas





Product Description







SPECIFICATION	d1	L1	L2	D
D3*12*D8*60L	3mm ib	12	/	8mm ib
D4*12*D8*60L	4mm ib	12	/	8mm ib
D5*14*D8*60L	5mm ua	14	/	8mm ib
D6*14*D8*60L	6mm ib	14	/	8mm ib
D7*14*D8*60L	7mm ib	14	/	8mm ib
D4*14(35)*D8*80L	4mm ib	14	35mm ib	8mm ib
D5*14(35)*D8*80L	5mm ua	14	35mm ib	8mm ib
D6*14(35)*D8*80L	6mm ib	14	35mm ib	8mm ib
D7*14(35)*D8*80L	7mm ib	14	35mm ib	8mm ib
D8*14*D8*80L	8mm ib	14	/	8mm ib
D5*16(45)*D8*100L	5mm ua	16	45mm ib	8mm ib
D6*16(45)*D8*100L	6mm ib	16	45mm ib	8mm ib
D8*16*D8*100L	8mm ib	16	/	8mm ib
D8*16*D8*120L	8mm ib	16	/	8mm ib
D8*30*D8*100L	8mm ib	30	/	8mm ib
D8*30(70)*D8*100L	8mm ib	30	70 hli	8mm ib
D10*30*D10*100L	10 hli	30	/	10 hli
D10*16*D10*120L	10 hli	16	/	10 hli



Tolerances
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045



Daim ntawv thov
Carbon Steel Hlau alloy	Pre-harden steel	High-hardened				Stainless hlau	Tooj Alloy	Aluminium Alloy
	45 HRC	50 HRC	55 HRC	60 HRC	65 HRC
								○



Pom zoo Parameters



Khoom siv	Carbon Steel, Alloy Steel, S45C, FC, FCD, SCM, S50C, SKS ...		Alloy Steel, Tool Steel SCR, SNCM, SKD11, SKD61.NAK80		Hard Steel, SKD11
Hardness	HRC 30		HRC 50		HRC 60
Txoj kab uas hla	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)
1 hli	22000	400	18000	200	9000	140
1.5 hli	12000	500	11000	280	5200	150
2 hli	10000	550	10000	280	4600	170
3mm ib	9000	600	5500	310	3500	220
4mm ib	6000	750	5000	400	2200	220
5mm ua	4800	800	4000	400	1700	240
6mm ib	4500	820	3800	420	1600	300
8mm ib	3500	820	2800	420	1000	300
10 hli	3000	820	1800	420	900	300
12 hli	2000	820	1600	350	800	300
16 hli	1500	650	1000	300	500	150
20 hli	1200	650	900	300	400	150





Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO BLACK
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)



Cov duab ntxaws

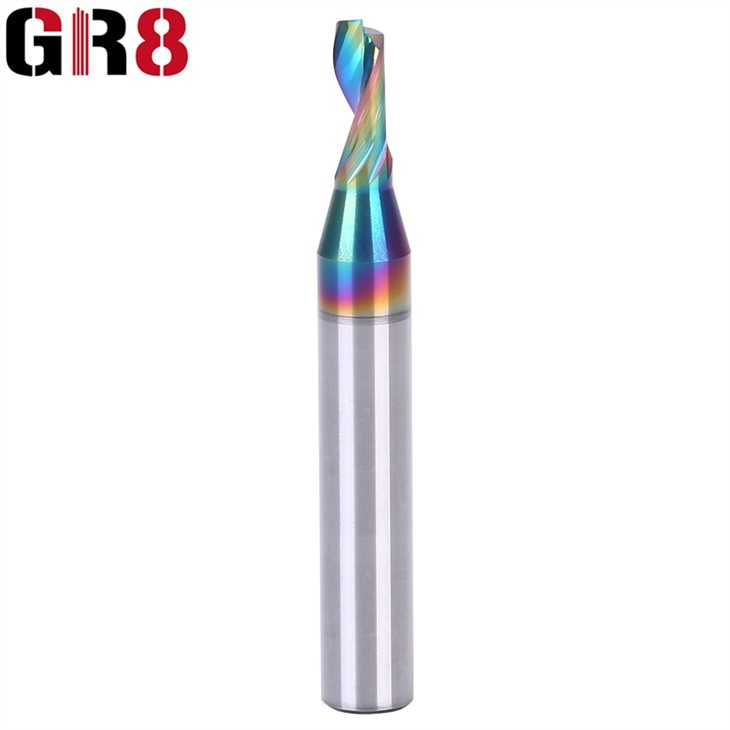

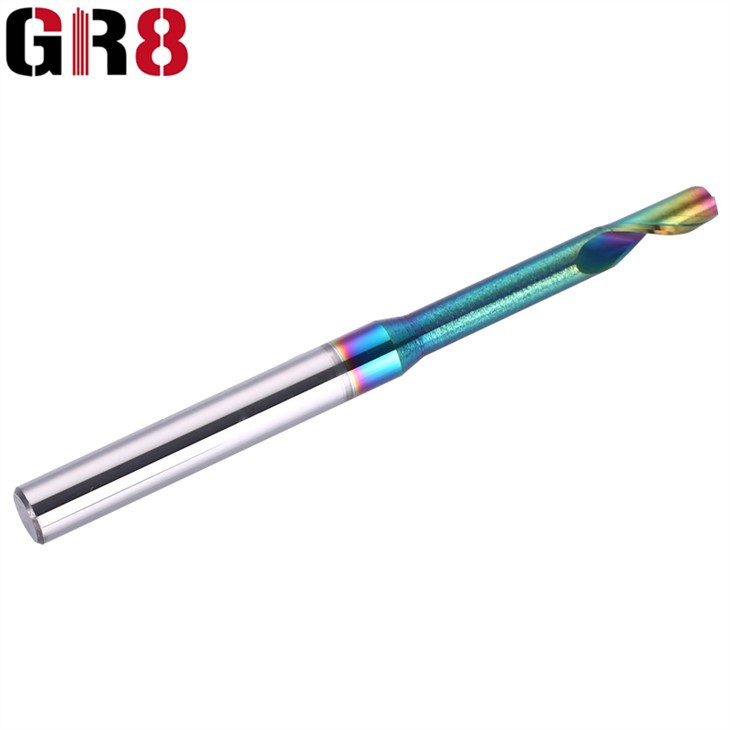

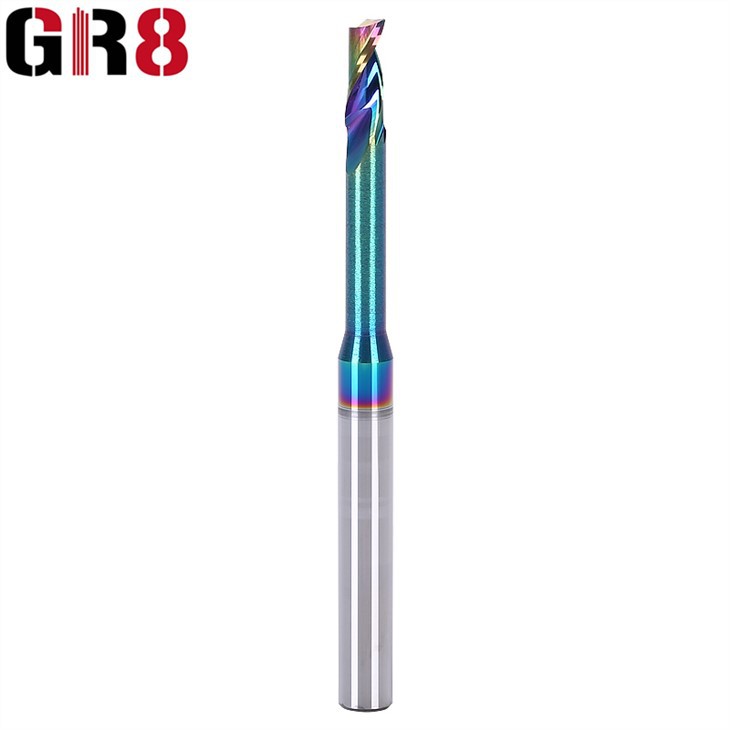

1 Flutes Aluminium Processing cutter	1 Flutes Aluminium Ua Carbide cutter	1 Flutes Aluminium Ua Carbide milling cutter





Peb Qhov Zoo



1. Ua kom cov neeg siv khoom hloov pauv ntau dua: nrog peb cov kev paub dhau los thiab kev ua lag luam, peb tuaj yeem pab koj tsim cov neeg siv khoom ntau dua nrog kev hloov pauv ntau dua.



2. Kev tawm tswv yim nrawm: peb muab 24 teev kev pabcuam online, txhua yam lus nug los ntawm koj lossis koj cov neeg siv khoom yuav teb tam sim ntawd, koj cov neeg siv khoom yuav zoo siab, ces koj yuav zoo siab.



3. Cov cuab yeej Cutomized: Cov cuab yeej kho tau tuaj yeem muab raws li koj daim duab kos thiab koj daim ntawv ua haujlwm.





Ntim





FAQ



1.Lub sij hawm xa tuaj: 5-10 hnub ua hauj lwm

2. Cov nqe lus them nqi: T / T, Paypal, Western Union, AliExpress.

3.Shipping nqe lus: DHL. FEDEX, UPS, TNT, EMS thiab lwm yam. raws li koj xav tau.

4.Main Markets: Lub teb chaws Yelemees, Ltalis, Fabkis, Spain, Russia, Australia, Brazil, Canada, USA, Mexico, Czech, Poland, Qaib ntxhw thiab hais txog.
