2 Flutes Ball Nose Micro-inch Endmill

Thaum nws los txog rau kev txiav cov haujlwm, cov cuab yeej zoo tuaj yeem ua rau txhua qhov sib txawv ntawm koj qhov kev ua haujlwm. Yog tias koj tab tom nrhiav rau lub cuab yeej txiav uas muab qhov tseeb thiab qhov tseeb, saib tsis pub dhau qhov no 2 flutes pob qhov ntswg micro-diameter endmill! Txawm hais tias koj tab tom machining aluminium, steel, tooj dag, lossis lwm yam ntaub ntawv, nws tuaj yeem ua tau yooj yim. Cov khoom siv zoo carbide siv nyob rau hauv qhov kawg zeb no ua rau nws tiv taus qhov kub thiab txias thiab tau txais kev hnav tsis tshua muaj siab thiab txiav kev ua tau zoo, yog li nws tuaj yeem txo cov txheej txheem nyuaj thiab txhim kho kev ua haujlwm. Nws yog haum rau ntau yam micro-processing teb nrog complex duab thiab siab precision yuav tsum, xws li micro-machining, hluav taws xob qhov chaw ua, kho qhov muag ntaus ntawv, thiab lwm yam. Vim nws robustness thiab siab positional raug, yuam kev thiab poob los ntawm kev ua hauj lwm tsis zoo los yog cov cuab yeej cuab tam yuav raug txo kom tsawg. Zoo siab? Tiv tauj peb tam sim no kom paub meej ntxiv!



Cov yam ntxwv tseem ceeb thiab cov txiaj ntsig:

1. Microdiameter tsim

Muaj nyob rau hauv txoj kab uas hla ntawm 0.1 hli mus rau 2 hli, qhov kawg zeb no yog qhov zoo tagnrho rau kev ua haujlwm me me thiab kev ua haujlwm nyuaj uas yuav tsum tau ua haujlwm siab. Seb machining me me los yog complex Cheebtsam, nws muaj peev xwm ua tau nruj heev tolerances thiab du nto finishes.



2. Ob-edged tsim

Qhov kawg zeb no nta ob-ntug tsim rau kev ua tau zoo ntawm kev txiav thiab nti khiav tawm, tsim los tiv thaiv chip buildup thiab txuas lub neej cuab yeej. High flute suav txo kev co thiab ua kom muaj kev ruaj ntseg rau smoother, txiav ceev ceev.



3. Pob kawg tsim

Lub pob qhov ntswg tsim ntawm qhov kawg zeb no ntxiv rau nws cov versatility thiab precision. Lub taub hau sib npaug tso cai rau kev txiav cov lus smoother thiab txo cov cuab yeej cim ntawm lub workpiece. Nyob rau tib lub sijhawm, lub pob qhov ntswg kuj ua rau lub cuab yeej nkag mus rau qhov chaw sib sib zog nqus thiab nruj, nthuav dav ntau yam ntawm cov ntawv thov txiav.



4. Haum rau ntau yam ntaub ntawv

Qhov no2 flutes pob qhov ntswg micro-inch enua dmilltuaj yeem muab qhov nyuaj ntawm 60HRC, yog li nws tsim nyog rau ntau yam hardness thiab nyuaj-rau-tshuab hlau cov ntaub ntawv, xws li steel, hlau, tooj liab, txhuas, carbide, thiab lwm yam.





Spotlight Exhibits





Hoobkas





Product Description

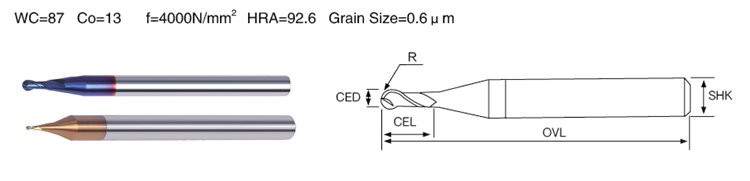

60HRC 2 Flutes Micro Pob Nose End Zeb rau Hard Steel





SPECIFICATION	d1	L1	D	L
D1*3*D4*50L	1 hli	3mm ib	4mm ib	50 hli
D1.5*4.5*D4*50L	1.5 hli	4.5mm ib	4mm ib	50 hli
D2*6*D4*50L	2 hli	6mm ib	4mm ib	50 hli
D2.5*7.5*D4*50L	2.5 hli	7.5mm ib	4mm ib	50 hli
D3*9*D4*50L	3mm ib	9mm ib	4mm ib	50 hli
D3.5*10*D4*50L	3.5mm ib	10 hli	4mm ib	50 hli
D4*12*D4*50L	4mm ib	12 hli	4mm ib	50 hli
D4*16*D4*75L	4mm ib	16 hli	4mm ib	75mm ua
D4*20*D4*100L	4mm ib	20 hli	4mm ib	100 hli
D5*15*D5*50L	5mm ua	15 hli	5mm ua	50 hli
D5*20*D5*75L	5mm ua	20 hli	5mm ua	75mm ua
D5*25*D5*100L	5mm ua	25 hli	5mm ua	100 hli
D6*18*D6*50L	6mm ib	18 hli	6mm ib	50 hli
D6*24*D6*75L	6mm ib	24mm ib	6mm ib	75mm ua
D6*30*D6*100L	6mm ib	30 hli	6mm ib	100 hli
D8*24*D8*60L	8mm ib	24mm ib	8mm ib	60 hli
D8*30*D8*75L	8mm ib	30 hli	8mm ib	75mm ua
D8*35*D8*100L	8mm ib	35mm ib	8mm ib	100 hli
D10*30*D10*75L	10 hli	30 hli	10 hli	75mm ua
D10*45*D10*100L	10 hli	45mm ib	10 hli	100 hli
D12*35*D12*75L	12 hli	35mm ib	12 hli	75mm ua
D12*45*D12*100L	12 hli	45mm ib	12 hli	100 hli
D14*45*D14*100L	14mm ib	45mm ib	14mm ib	100 hli
D16*45*D16*100L	16 hli	45mm ib	16 hli	100 hli
D18*45*D18*100L	18 hli	45mm ib	18 hli	100 hli
D20*45*D20*100L	20 hli	45mm ib	20 hli	100 hli
D6*45*D6*150L	6mm ib	45mm ib	6mm ib	150 hli
D8*50*D8*150L	8mm ib	50 hli	8mm ib	150 hli
D10*60*D10*150L	10 hli	60 hli	10 hli	150 hli
D12*60*D12*150L	12 hli	60 hli	12 hli	150 hli
D14*70*D14*150L	14mm ib	70 hli	14mm ib	150 hli
D16*75*D16*150L	16 hli	75mm ua	16 hli	150 hli
D18*75*D18*150L	18 hli	75mm ua	18 hli	150 hli
D20*75*D20*150L	20 hli	75mm ua	20 hli	150 hli



Tolerances
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045



Daim ntawv thov
Carbon Steel Hlau alloy	Pre-harden steel	High-hardened				Stainless hlau	Tooj Alloy	Aluminium Alloy
	45 HRC	50 HRC	55 HRC	60 HRC	65 HRC
○	○	√	√			○	○	○



Pom zoo Parameters



Khoom siv	Carbon Steel, Alloy Steel, S45C, FC, FCD, SCM, S50C, SKS ...		Alloy Steel, Tool Steel SCR, SNCM, SKD11, SKD61.NAK80		Hard Steel, SKD11
Hardness	HRC 30		HRC 50		HRC 60
Txoj kab uas hla	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)
1 hli	22000	400	18000	200	9000	140
1.5 hli	12000	500	11000	280	5200	150
2 hli	10000	550	10000	280	4600	170
3mm ib	9000	600	5500	310	3500	220
4mm ib	6000	750	5000	400	2200	220
5mm ua	4800	800	4000	400	1700	240
6mm ib	4500	820	3800	420	1600	300
8mm ib	3500	820	2800	420	1000	300
10 hli	3000	820	1800	420	900	300
12 hli	2000	820	1600	350	800	300
16 hli	1500	650	1000	300	500	150
20 hli	1200	650	900	300	400	150





Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO BLACK
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)

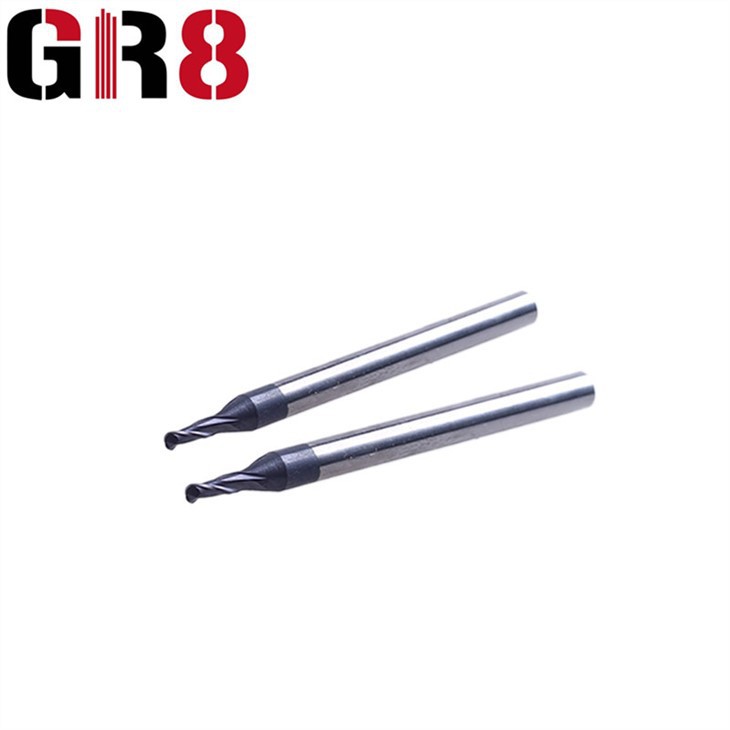

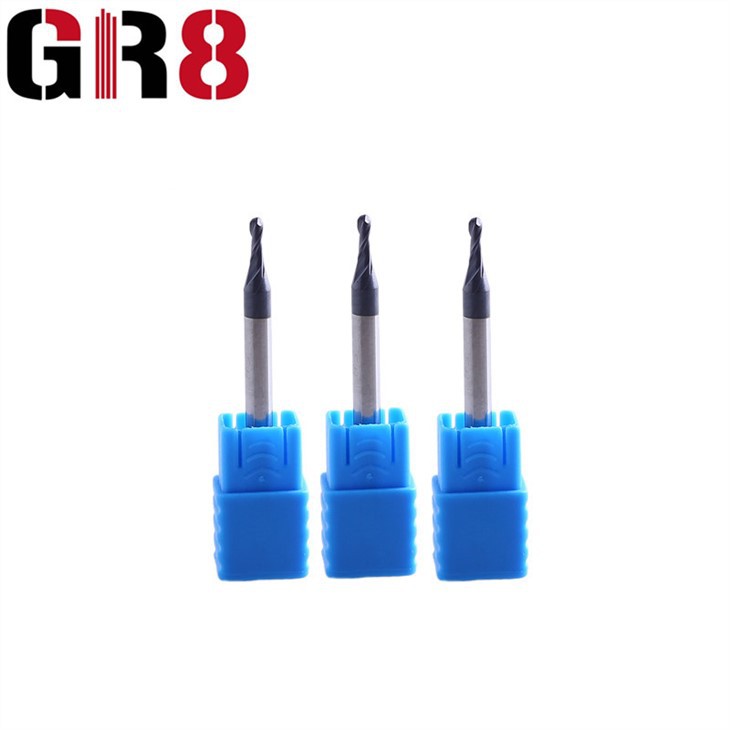

Cov duab ntxaws





2 Flutes Ball Nose Micro-inch milling cutter	2 Flutes Ball Nose Micro-inch kawg zeb	2 Flutes Ball Nose Micro-inch Carbide cutter





Peb Qhov Zoo



Daim ntawv cog lus nruj kev soj ntsuam tau nyiam txhua lub tuam tsev kom paub tseeb tias qhov ua tau ntawm txhua qhov kev txiav txim.

Txheej txheem tsim thiab validation ua ntej bulk ntau lawm.

Kev tswj nruj nruj ntawm txhua yam khoom siv raw thiab cov khoom siv, Tag nrho cov ntaub ntawv raw mus txog qib siab hauv ntiaj teb.





Ntim





FAQ



1. Koj tuaj yeem hloov kho rau cov neeg siv khoom?

Yog lawm, peb tuaj yeem kho raws li koj xav tau, peb muaj R & D department, peb cov neeg tsim khoom tuaj yeem tsim qauv rau koj thiab peb cov kws tshaj lij ua qauv.



2. Lub sij hawm ntawm tus qauv yog dab tsi:

Txog 7 hnub tom qab koj paub meej tias daim duab peb ua rau koj.



3. Lub sijhawm khoom xa tuaj rau ntau lawm yog dab tsi?

Txog 25 hnub.
