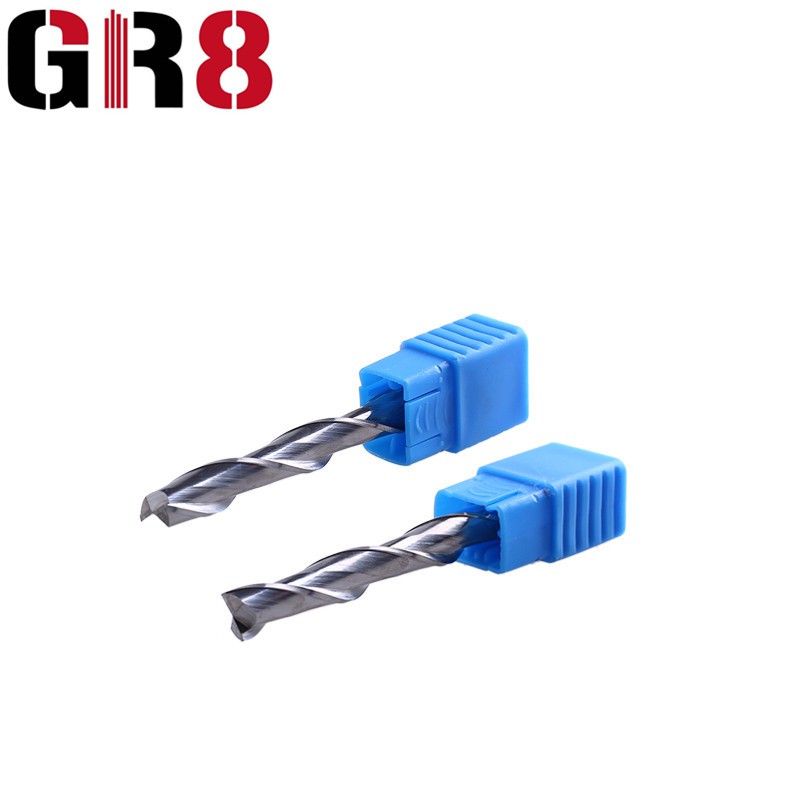

2 Flutes Flat Bits

Qhov no 2 flutes ca cov khoom nta ib lub tshuab raj tsim tshwj xeeb uas muab lub zog txiav zoo heev thiab txo qhov kev pheej hmoo ntawm chipping lossis ua rau cov khoom puas. Txawm hais tias koj yog ib tug kws ntoo, ntoo, lossis tus neeg nyiam DIY, cov khoom no yog qhov tseem ceeb ntxiv rau koj cov khoom siv. Ua los ntawm high-speed steel, lub laum no yog tawv, kub-resistant, thiab muaj peev xwm txiav zoo heev, thiab nws kuj muaj corrosion-resistant zog los xyuas kom meej tias nws yuav tsis xeb thiab kav ntev. Nrhiav nws muaj nyob rau hauv ntau qhov ntau thiab tsawg kom haum rau koj cov kev xav tau tshwj xeeb. Txawm hais tias tackling me me woodworking tej yaam num los yog ntau tshaj cov hauj lwm, peb muaj ib tug xyaum ua raws li koj xav tau. Qhov ntau thiab tsawg ntawm 6mm mus rau 45mm kom ntseeg tau tias muaj ntau yam kev xav tau ntawm kev ua haujlwm ntoo. Peb xav tias txhua tus neeg siv khoom tsim nyog cov cuab yeej zoo ntawm tus nqi tsim nyog yog li qhov kev xyaum tiaj tus no pheej yig heev. Yuav tam sim no thiab cia nws hloov pauv koj qhov kev paub ua haujlwm thiab ua kom cov khoom tsim tau ntawm koj cov cuab yeej!



Nta

1. Lub ntsiab feature ntawm lub tiaj tus laum ntsis yog nws lub tiaj tus thiab ntev me ntsis duab. Qhov kev tsim no yog txhawm rau txo kev sib txhuam thiab kev tiv thaiv kom ntau li ntau tau thaum lub laum me ntsis nkag mus rau hauv cov khoom, txhawm rau txhim kho qhov kev nkag mus ntawm qhov laum me ntsis.

2. Lub laum me me no yog ua los ntawm cov hlau nrawm los txhim kho qhov nyuaj thiab txiav quab yuam ntawm lub laum me ntsis, ua rau nws tsim nyog rau kev ua cov khoom tshwj xeeb.

3. 2 flutes flat me ntsisstuaj yeem siv dav hauv ntau qhov sib txawv. Tshwj xeeb tshaj yog nyob rau hauv lub teb ntawm woodworking, lub laum me ntsis no yuav siv tau rau drilling ca los yog phab ntsa-mounted ntoo thiab boards, thiab lwm yam.

4. Qhov kev xyaum no muaj qhov sib piv tsis sib xws thiab yooj yim ntawm kev siv vim tias qhov tshwj xeeb zawj tsim optimizes kev ua haujlwm ntawm kev xyaum. Qhov no txhais tau tias nws yuav tsum tau siv zog tsawg kawg nkaus kom ua tiav cov txiaj ntsig xav tau thaum txo qis kev ua haujlwm thiab kev siv zog ua kom tiav qhov project.



Spotlight Exhibits





Hoobkas





Product Description



55HRC 2 Flutes Flat End zeb tsis muaj txheej rau tawv ntoo





SPECIFICATION	d1	L1	D	L
D3.175*12*D3.175*38L	3, 175 mm	12 hli	3, 175 mm	38L
D3.175*17*D3.175*38L	3, 175 mm	17mm ib	3, 175 mm	38L
D3.175*22*D3.175*45L	3, 175 mm	22 hli	3, 175 mm	45L
D3.175*25*D3.175*45L	3, 175 mm	25 hli	3, 175 mm	45L
D4*17*D4*50L	4mm ib	17mm ib	4mm ib	50L
D4*22*D4*50L	4mm ib	22 hli	4mm ib	50L
D4*25*D4*50L	4mm ib	25 hli	4mm ib	50L
D4*32*D4*60L	4mm ib	32mm ib	4mm ib	60L
D6*17*D6*50L	6mm ib	17mm ib	6mm ib	50L
D6*22*D6*50L	6mm ib	22 hli	6mm ib	50L
D6*25*D6*50L	6mm ib	25 hli	6mm ib	50L
D6*32*D6*60L	6mm ib	32mm ib	6mm ib	60L
D6*42*D6*70L	6mm ib	42mm ib	6mm ib	70L
D6*52*D6*80L	6mm ib	52mm ua	6mm ib	80L
D6*62*D6*90L	6mm ib	62mm ua	6mm ib	90L
D8*25*D8*60L	8mm ib	25 hli	8mm ib	60L
D8*32*D8*60L	8mm ib	32mm ib	8mm ib	60L
D8*42*D8*70L	8mm ib	42mm ib	8mm ib	70L
D8*52*D8*80L	8mm ib	52mm ua	8mm ib	80L
D8*62*D8*90L	8mm ib	62mm ua	8mm ib	90L
D10*32*D10*75L	10 hli	32mm ib	10 hli	75L
D10*42*D10*85L	10 hli	42mm ib	10 hli	85L
D10*62*D10*95L	10 hli	62mm ua	10 hli	95L



Kev kam rau siab
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045



Daim ntawv thov
Multilayer Board	MDF	Ntoo Ntoo				EVE daim txhuam cev	Particleboard	Aluminium Alloy
		50 HRC	55 HRC	60 HRC	65 HRC
○	○	√	√				○



Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO BLACK
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)



Cov duab ntxaws





2 Flutes tiaj tus tib lub tshuab raj nplaim	2 Flutes tiaj tus tib lub raj nplaim Carbide cutter	2 Flutes tiaj tus tib lub tshuab raj kawg



Peb Qhov Zoo



1. Kev paub zoo ntawm kev ua lag luam sib txawv tuaj yeem ua tau raws li qhov tshwj xeeb.

2. Cov chaw tsim khoom tiag

3. Cov kws tshaj lij kev ua haujlwm muaj zog ua kom ntseeg tau tias tsim cov khoom zoo tshaj plaws.

4. Kev tswj tus nqi tshwj xeeb xyuas kom muab tus nqi zoo tshaj plaws.





Ntim





FAQ



1. Q. Peb puas tuaj yeem luam peb lub logo?

A. Yog, peb muab kev pabcuam OEM.



2. Q. Koj puas muab cov qauv?

A. Yog, peb muab cov qauv thiab cov qauv nqi yuav rov qab rau koj thaum paub meej tias qhov kev txiav txim



3.Q: Cov nqe lus them nqi yog dab tsi?

A: TT nrog 30% kev them nqi, 70% ua ntej xa khoom los yog L / C thaum pom.

Paypal lossis West Union kuj lees txais.
