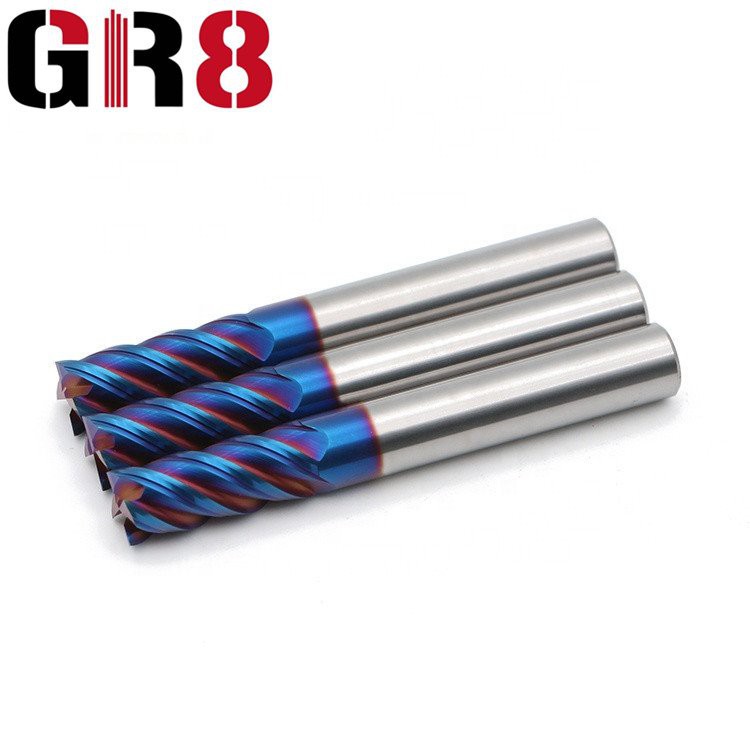

65HRC 4 Flutes Flat End Zeb

Qhov no 65HRC 4 flutes ca kawg zeb muaj nyob rau hauv ntau qhov ntau thiab tsawg los ntawm 1mm txog 20mm. Peb siv cov khoom zoo tshaj plaws high-speed steel nyob rau hauv kev ua lag luam raws li nws cov khoom siv raw, tsuas yog ua kom lub neej kev pab cuam ntev ntawm cov khoom thiab txo qhov kev xav tau ntawm kev hloov ntau zaus. Plaub qhov grooves yog tsim los kom du cov npoo ntawm qhov milling cutter, muab cov khoom kawg kom huv si. Nyob rau tib lub sijhawm, qhov tsim qauv no ua kom zoo tshaj plaws nti tshem tawm thiab txo qhov kev pheej hmoo ntawm kev sib tsoo. Tom qab cov txheej txheem tshwj xeeb hardening, lub hardness ntawm no milling cutter ncav cuag 65 HRC yog li nws tuaj yeem txhim kho kev ua haujlwm zoo thiab kev ntseeg siab. Piv nrog rau tib yam khoom ntawm kev ua lag luam, peb cov milling cutters tuaj yeem txiav ntau hom ntaub ntawv xws li steel, aluminium, stainless hlau, high-temperature alloys, thiab lwm yam, tsis tas yuav hloov ntau zaus. Yog tias koj xav yuav, thov hu rau peb tam sim no kom paub ntau ntxiv txog cov khoom no.



Khoom zoo

1. Lub hardness ntawm 65HRC ua qhov no65HRC 4 flutes tiaj tus kawg zebmuaj peev xwm tiv nrog kev ua haujlwm siab thiab kev kub ceev milling.

2. Qhov milling no siv cov txheej txheem nano-txheej txheej, uas ua rau lub ntsej muag ntawm lub cutter smoother thiab nyuaj, thiab muaj qhov zoo ntawm kev hnav thiab tiv thaiv kev cuam tshuam.

3. Lub zuag qhia tag nrho cov khoom siv high-speed steel tuaj yeem tiv thaiv kev sib cais ntawm cov ciam teb ntawm kev txiav, thiab tib lub sijhawm txuas ntxiv kev pabcuam lub neej ntawm cov cuab yeej txiav.

4. Tus 4-flute tsim tuaj yeem muab cov txiaj ntsig zoo dua nti tawm, txhim kho cov txheej txheem ua haujlwm thiab txo cov khoom siv poob.

5. Qhov no milling yog dav siv. Nws yog tsim rau kev txiav cov hlau tsis muaj hlau xws li txhuas, tooj dag thiab tooj liab, nrog rau ntau yam yas thiab ntoo.



Spotlight Exhibits





Hoobkas





Product Description



65HRC 4 Flutes Khoom Carbide Square Endmills nrog Nano Txheej





SPECIFICATION	d1	L1	D	L
D1*3*D4*50L	1 hli	3mm ib	4mm ib	50 hli
D1.5*4.5*D4*50L	1.5 hli	4.5mm ib	4mm ib	50 hli
D2*6*D4*50L	2 hli	6mm ib	4mm ib	50 hli
D2.5*7.5*D4*50L	2.5 hli	7.5mm ib	4mm ib	50 hli
D3*9*D4*50L	3mm ib	9mm ib	4mm ib	50 hli
D3.5*10*D4*50L	3.5mm ib	10 hli	4mm ib	50 hli
D4*12*D4*50L	4mm ib	12 hli	4mm ib	50 hli
D4*16*D4*75L	4mm ib	16 hli	4mm ib	75mm ua
D4*20*D4*100L	4mm ib	20 hli	4mm ib	100 hli
D5*15*D5*50L	5mm ua	15 hli	5mm ua	50 hli
D5*20*D5*75L	5mm ua	20 hli	5mm ua	75mm ua
D5*25*D5*100L	5mm ua	25 hli	5mm ua	100 hli
D6*18*D6*50L	6mm ib	18 hli	6mm ib	50 hli
D6*24*D6*75L	6mm ib	24mm ib	6mm ib	75mm ua
D6*30*D6*100L	6mm ib	30mm	6mm ib	100 hli
D8*24*D8*60L	8mm ib	24mm ib	8mm ib	60 hli
D8*30*D8*75L	8mm ib	30mm	8mm ib	75mm ua
D8*35*D8*100L	8mm ib	35mm ib	8mm ib	100 hli
D10*30*D10*75L	10 hli	30mm	10 hli	75mm ua
D10*45*D10*100L	10 hli	45mm ib	10 hli	100 hli
D12*35*D12*75L	12 hli	35mm ib	12 hli	75mm ua
D12*45*D12*100L	12 hli	45mm ib	12 hli	100 hli
D14*45*D14*100L	14mm ib	45mm ib	14mm ib	100 hli
D16*45*D16*100L	16 hli	45mm ib	16 hli	100 hli
D18*45*D18*100L	18 hli	45mm ib	18 hli	100 hli
D20*45*D20*100L	20 hli	45mm ib	20 hli	100 hli
D6*45*D6*150L	6mm ib	45mm ib	6mm ib	150 hli
D8*50*D8*150L	8mm ib	50 hli	8mm ib	150 hli
D10*60*D10*150L	10 hli	60 hli	10 hli	150 hli
D12*60*D12*150L	12 hli	60 hli	12 hli	150 hli
D14*70*D14*150L	14mm ib	70 hli	14mm ib	150 hli
D16*75*D16*150L	16 hli	75mm ua	16 hli	150 hli
D18*75*D18*150L	18 hli	75mm ua	18 hli	150 hli
D20*75*D20*150L	20 hli	75mm ua	20 hli	150 hli



Tolerances
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045



Daim ntawv thov
Carbon Steel Hlau alloy	Pre-harden steel	High-hardened				Stainless hlau	Tooj Alloy	Aluminium Alloy
	45 HRC	50 HRC	55 HRC	60 HRC	65 HRC
○	○	√	√			○	○	○



Pom zoo Parameters



Khoom siv	Carbon Steel, Alloy Steel, S45C, FC, FCD, SCM, S50C, SKS ...		Alloy Steel, Tool Steel SCR, SNCM, SKD11, SKD61.NAK80		Hard Steel, SKD11
Hardness	HRC 30		HRC 50		HRC 60
Txoj kab uas hla	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)
1 hli	22000	400	18000	200	9000	140
1.5 hli	12000	500	11000	280	5200	150
2 hli	10000	550	10000	280	4600	170
3mm ib	9000	600	5500	310	3500	220
4mm ib	6000	750	5000	400	2200	220
5mm ua	4800	800	4000	400	1700	240
6mm ib	4500	820	3800	420	1600	300
8mm ib	3500	820	2800	420	1000	300
10 hli	3000	820	1800	420	900	300
12 hli	2000	820	1600	350	800	300
16 hli	1500	650	1000	300	500	150
20 hli	1200	650	900	300	400	150





Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO BLACK
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)

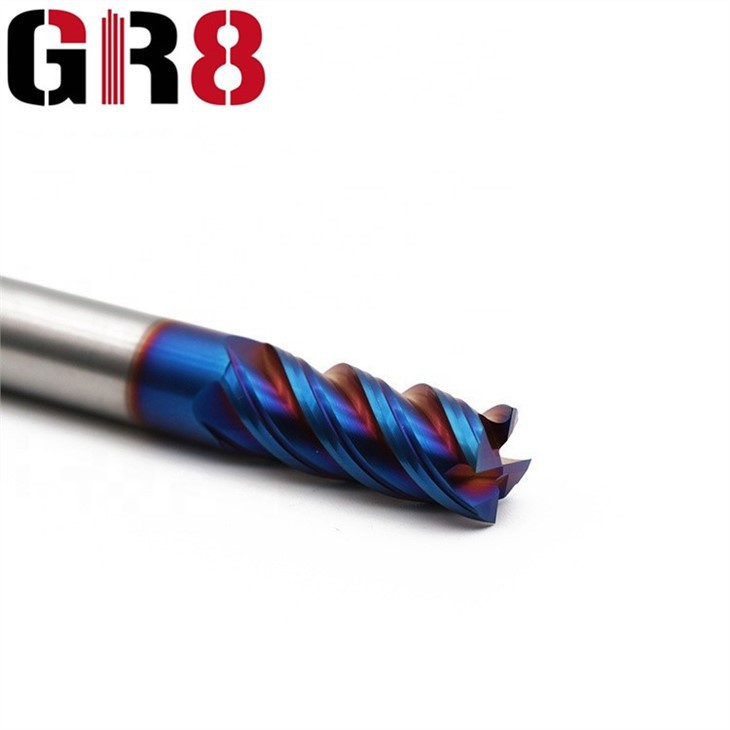

Cov duab ntxaws





4 Flutes square Carbide milling cutter	4 Flutes square Carbide cutter	4 Flutes square kawg zeb





Peb Qhov Zoo



1. Kev tswj xyuas khoom zoo thiab lub sijhawm xa khoom yog tswj hwm nruj;

2. Lub Hoobkas ncaj qha muab cov nqi sib tw;

3. Tag nrho cov lus nug yuav teb rau hauv 12 teev;

4. OEM & ODM kev pabcuam muaj;

5. Muab cov kev pab cuam tom qab muag thawj zaug rau cov neeg siv khoom.





Ntim





FAQ



1. Q: Puas yog koj tus nqi sib tw?

A: Tsuas yog lub tshuab zoo peb muab. Muaj tseeb peb yuav muab koj lub Hoobkas zoo tshaj tus nqi raws li

superior khoom thiab kev pabcuam.



2. Q: vim li cas thiaj xaiv peb?

A: Peb yog ib lub tuam txhab High-tech Enterprises, AAA Daim Ntawv Cog Lus thiab Cov Lag Luam Trustworthy, AAA Technology Consulting Firm.



3. Q: Nta rau Steel Platform nrog yas txheej tiav?

A: Xim Yas Txau rau ntawm lub platform nto nrog tus nqi sib tw piv nrog cov aluminium alloy thiab kub dip gavalnized nto.Kub dip galvanized steel platform nrog zoo Anti corrosion thiab qis nqi tshaj Aluminium alloy platform.



4. Q: Koj tus nqi qib li cas?

A: Lub Hoobkas ncaj qha muag, peb muaj tag nrho cov kab ntau lawm ua haujlwm los ntawm lub platform mus rau qhov tseem ceeb.



5. Q: Cov nqe lus them nqi twg koj txais?

A: T / T lossis L / C lossis West Union lossis Moneygram lossis Paypal, lwm tus txais tos.
