DLC Txheej U Qhov Kawg Mill rau Aluminium

Spotlight Exhibits

Kev piav qhia

Hauv kev lag luam niaj hnub machining, cov cuab yeej txiav kom raug yog tus yuam sij kom tau txais txiaj ntsig zoo machining. Qhov no DLC Txheej U Qhov Kawg Mill rau Txhuas yog tsim tshwj xeeb rau kev ua txhuas, nrog cov qauv tshwj xeeb, DLC txheej thiab tsim tshiab. Nws ua tau zoo hauv ntau yam kev ua haujlwm thiab muab cov kev daws teeb meem raug thiab ua tau zoo rau kev ua haujlwm ntawm txhuas. Lub milling cutter tsis tsuas yog muaj kev ua tau zoo los tiv thaiv adhesion, tab sis kuj tuaj yeem ua rau lub neej ntev txog li 100%. Qhov no tsis tsuas yog pab txo cov nqi ua haujlwm, tab sis kuj txo qhov zaus ntawm kev hloov cov cuab yeej.



Nta

1. U-groove tsim: Qhov no DLC Txheej U Slot End Mill rau Aluminium txais U-groove tsim, uas yuav pab tshem tawm cov burrs, ua kom qhov chaw ntawm lub workpiece du, tsis txhob ua rau cov khoom tiav, thiab xyuas kom meej qhov zoo ntawm qhov chaw thaum lub sij hawm. ua.



2. DLC txheej: Qhov saum npoo ntawm lub cuab yeej yog kho nrog DLC ​​txheej los muab kev tiv thaiv adhesion. Qhov no ua rau nws tsim nyog rau kev ua ntau yam khoom siv hlau tsis yog hlau, xws li txhuas alloy, GFRP, CFRP, tooj liab alloy thiab graphite, thiab muab cov kev daws teeb meem rau ntau yam kev ua haujlwm.



3. Txo cov kev ua haujlwm siab: Nws cov txheej txheem ua rau nws muaj kev sib txhuam tsis tshua muaj kev sib txhuam, uas tuaj yeem txo qhov kev ua haujlwm siab, yog li txhim kho kev txiav thiab txo kev siv zog.



4. Kev txiav kom tiav thiab qhuav: Cov cuab yeej ua tau zoo hauv kev ua tiav thiab tuaj yeem siv rau kev txiav qhuav yam tsis muaj roj nplua nyeem. Qhov no ntxiv txo qhov nyuaj thiab ib puag ncig cuam tshuam hauv cov txheej txheem tsim khoom.



Daim ntawv thov

• Aluminium ua: Qhov no DLC Txheej U Qhov Kawg Mill rau Txhuas muaj kev ua tau zoo hauv kev ua haujlwm ntawm txhuas thiab tau dhau los ua cov cuab yeej xaiv thawj zaug rau kev ua cov khoom txhuas alloy thiab cov khoom siv txhuas.

• Kev ua cov khoom sib xyaw: Cov cuab yeej no kuj muaj kev ua tau zoo hauv kev ua cov khoom sib xyaw xws li GFRP thiab CFRP. Nws cov kev ua haujlwm los tiv thaiv adhesion thiab txiav efficiency ua rau nws tsim nyog rau kev ua haujlwm ntawm cov khoom sib xyaw.

• Kev ua ntawm tooj liab alloy thiab graphite: Nws cov khoom siv tawv tawv ua rau nws tsim nyog rau kev ua cov ntaub ntawv tshwj xeeb xws li tooj liab alloy thiab graphite, thiab muab cov kev daws teeb meem zoo thiab zoo rau cov ntaub ntawv no.



Hoobkas





Product Description

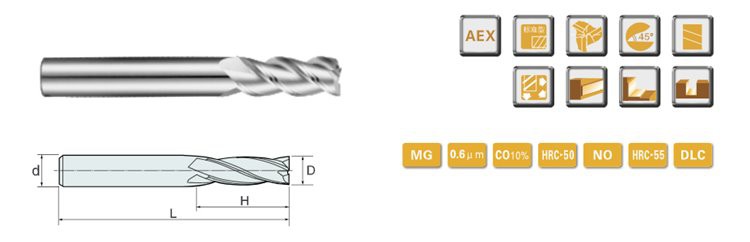

55-60HRC 3 Flute U Type Slot Carbide Endmill nrog Dlc Txheej rau Alumnium





SPECIFICATION	d1	L1	D	L
D1*3*D4*50L	1 hli	3mm ib	4mm ib	50 hli
D1.5*4.5*D4*50L	1.5 hli	4.5mm ib	4mm ib	50 hli
D2*6*D4*50L	2 hli	6mm ib	4mm ib	50 hli
D2.5*7.5*D4*50L	2.5 hli	7.5mm ib	4mm ib	50 hli
D3*9*D4*50L	3mm ib	9mm ib	4mm ib	50 hli
D3.5*10*D4*50L	3.5mm ib	10 hli	4mm ib	50 hli
D4*12*D4*50L	4mm ib	12 hli	4mm ib	50 hli
D4*16*D4*75L	4mm ib	16 hli	4mm ib	75mm ua
D4*20*D4*100L	4mm ib	20 hli	4mm ib	100 hli
D5*15*D5*50L	5mm ua	15 hli	5mm ua	50 hli
D5*20*D5*75L	5mm ua	20 hli	5mm ua	75mm ua
D5*25*D5*100L	5mm ua	25 hli	5mm ua	100 hli
D6*18*D6*50L	6mm ib	18 hli	6mm ib	50 hli
D6*24*D6*75L	6mm ib	24mm ib	6mm ib	75mm ua
D6*30*D6*100L	6mm ib	30 hli	6mm ib	100 hli
D8*24*D8*60L	8mm ib	24mm ib	8mm ib	60 hli
D8*30*D8*75L	8mm ib	30 hli	8mm ib	75mm ua
D8*35*D8*100L	8mm ib	35mm ib	8mm ib	100 hli
D10*30*D10*75L	10 hli	30 hli	10 hli	75mm ua
D10*45*D10*100L	10 hli	45mm ib	10 hli	100 hli
D12*35*D12*75L	12 hli	35mm ib	12 hli	75mm ua
D12*45*D12*100L	12 hli	45mm ib	12 hli	100 hli
D14*45*D14*100L	14mm ib	45mm ib	14mm ib	100 hli
D16*45*D16*100L	16 hli	45mm ib	16 hli	100 hli
D18*45*D18*100L	18 hli	45mm ib	18 hli	100 hli
D20*45*D20*100L	20 hli	45mm ib	20 hli	100 hli
D6*45*D6*150L	6mm ib	45mm ib	6mm ib	150 hli
D8*50*D8*150L	8mm ib	50 hli	8mm ib	150 hli
D10*60*D10*150L	10 hli	60 hli	10 hli	150 hli
D12*60*D12*150L	12 hli	60 hli	12 hli	150 hli
D14*70*D14*150L	14mm ib	70 hli	14mm ib	150 hli
D16*75*D16*150L	16 hli	75mm ua	16 hli	150 hli
D18*75*D18*150L	18 hli	75mm ua	18 hli	150 hli
D20*75*D20*150L	20 hli	75mm ua	20 hli	150 hli



Tolerances
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045



Daim ntawv thov
Carbon Steel Hlau alloy	Pre-harden steel	High-hardened				Stainless hlau	Tooj Alloy	Aluminium Alloy
	45 HRC	50 HRC	55 HRC	60 HRC	65 HRC
								○



Pom zoo Parameters



Khoom siv	Carbon Steel, Alloy Steel, S45C, FC, FCD, SCM, S50C, SKS ...		Alloy Steel, Tool Steel SCR, SNCM, SKD11, SKD61.NAK80		Hard Steel, SKD11
Hardness	HRC 30		HRC 50		HRC 60
Txoj kab uas hla	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)
1 hli	22000	400	18000	200	9000	140
1.5 hli	12000	500	11000	280	5200	150
2 hli	10000	550	10000	280	4600	170
3mm ib	9000	600	5500	310	3500	220
4mm ib	6000	750	5000	400	2200	220
5mm ua	4800	800	4000	400	1700	240
6mm ib	4500	820	3800	420	1600	300
8mm ib	3500	820	2800	420	1000	300
10 hli	3000	820	1800	420	900	300
12 hli	2000	820	1600	350	800	300
16 hli	1500	650	1000	300	500	150
20 hli	1200	650	900	300	400	150





Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO BLACK
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)



Cov duab ntxaws

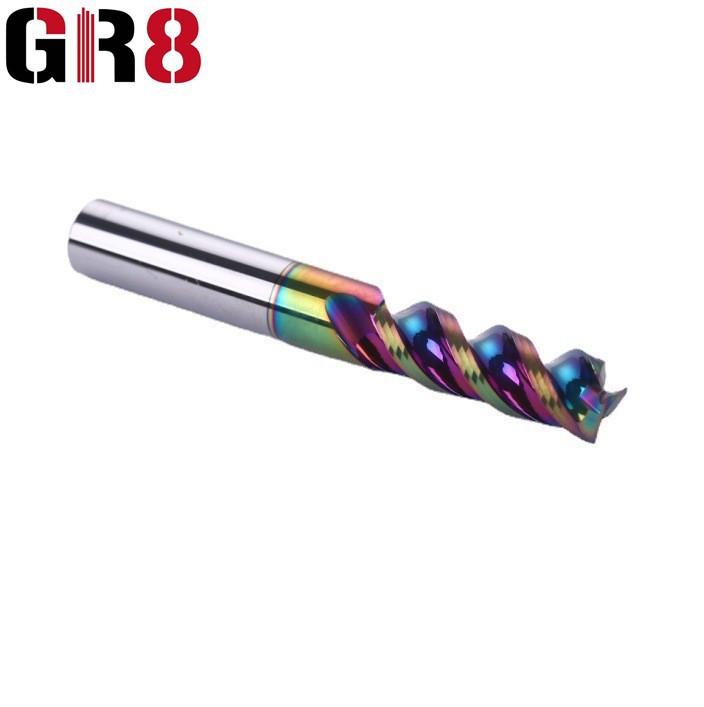

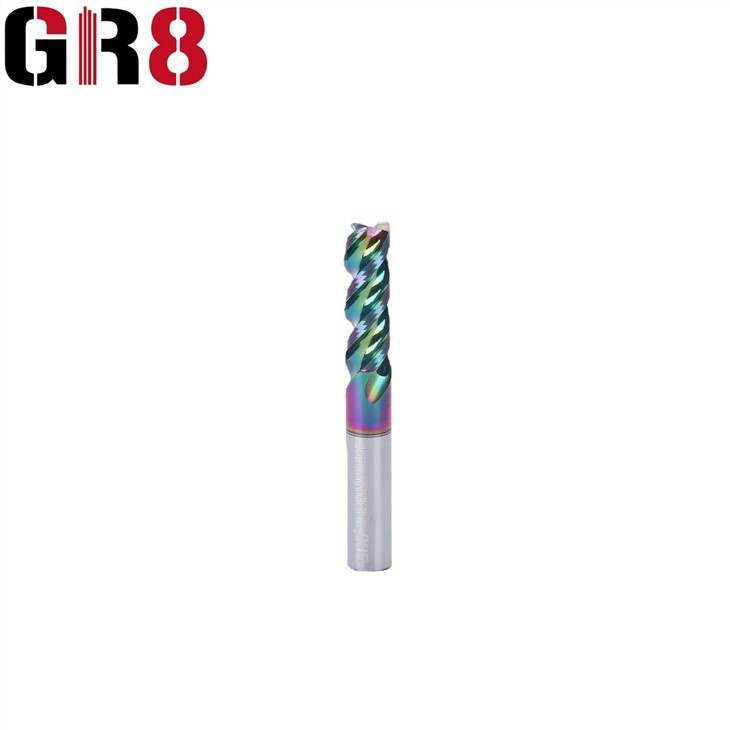

DLC txheej U slot Tej cuab yeej rau Aluminium	DLC txheej U qhov Milling Cutter rau Aluminium	DLC txheej U slot cutter rau Aluminium





Peb Qhov Zoo



Kev tshuaj xyuas ntawm qhov chaw rau tag nrho cov txheej txheem, tshuaj xyuas cov ntaub ntawv khaws cia traceable rau 3 xyoos.

Txhua tus kws tshuaj ntsuam xyuas tau txawj nrog daim ntawv pov thawj thoob ntiaj teb.

Tsim nyog WPS thiab cov kws tshaj lij welders lav vuam zoo.

100% kev soj ntsuam ntawm cov sprouts tiav ua ntej xa zaub mov.

Kev cob qhia tsis tu ncua rau cov neeg ua haujlwm soj ntsuam





Ntim





FAQ



1. Q: Koj qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi, koj puas tuaj yeem xa tuaj rau kuv kuaj?

A: Peb qhov tsawg kawg nkaus kom muaj nuj nqis yog 1 teeb, peb tuaj yeem xa koj cov catalog, txais tos koj tuaj xyuas peb lub tuam txhab.



2. Q: Koj cov khoom zoo li cas?

A: Peb tau txais CE, ISO, SGS, TUV, SONCAP daim ntawv pov thawj txog tam sim no.



3. Q: Lub sijhawm xa khoom ntawm koj lub tshuab yog dab tsi?

A: Feem ntau, lub sijhawm xa khoom ntawm peb lub tshuab yog li 30 hnub, lub tshuab customized yuav raug xa raws li kev sib tham nrog peb cov neeg siv khoom.



4. Q: Lub tshuab puas tuaj yeem hloov kho raws li peb xav tau, xws li muab tso rau ntawm peb lub logo?

A: Muaj tseeb peb lub tshuab tuaj yeem kho raws li koj xav tau, Muab tso rau ntawm koj lub logo kuj muaj.
