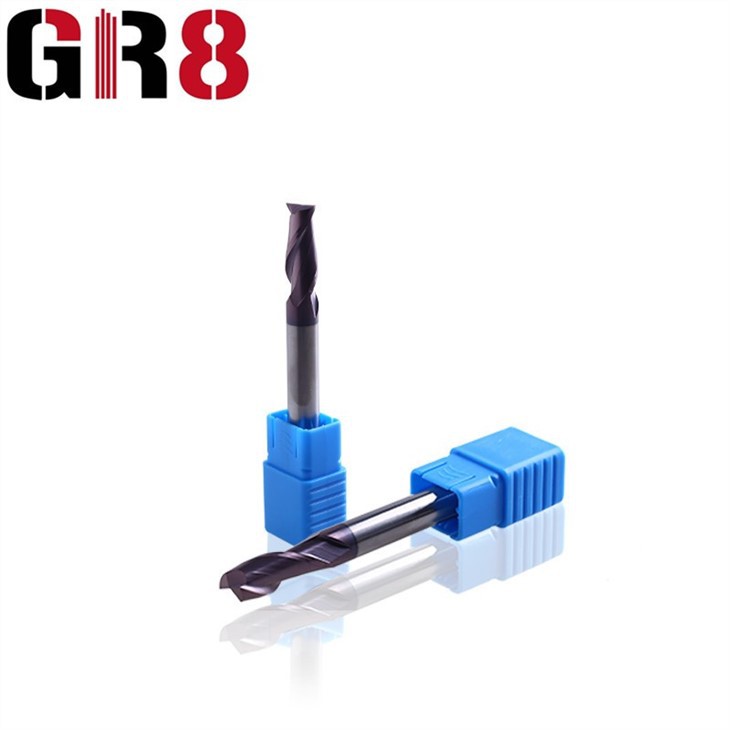

2 Flutes Flat End Zeb

Qhov no 2 flutes tiaj tus kawg zeb yog tsim los rau kev txiav, grooving thiab profiling nyob rau hauv cov ntaub ntawv xws li txhuas, yas thiab ntoo. Nws yog ua los ntawm cov khoom siv zoo cemented carbide, yog li nws muaj kev ua haujlwm siab thiab tiv thaiv kev ua haujlwm, thiab tseem tuaj yeem tswj hwm nws cov kev ua tau zoo thaum lub sij hawm ntev lub zog txiav. Qhov tshwj xeeb ca-hauv qab txiav ntug ua rau nws tsim tau ib qho chaw tiaj tus, uas yog qhov tseem ceeb hauv ntau daim ntawv thov milling. Yog li ntawd, lub zeb no zoo tagnrho rau kev txiav, grooving, profileing thiab contouring kev ua haujlwm hauv aerospace, tsheb, cuab yeej thiab lwm yam lag luam. Tsis tas li ntawd, cov khoom no muaj nyob rau hauv ntau txoj kab uas hla ntawm 1mm txog 20mm, nrog rau ntau qhov ntev. Peb lub tuam txhab txais kev siv thev naus laus zis thiab cov qauv kev ruaj ntseg zoo, yog li koj tuaj yeem yuav thiab siv nrog kev ntseeg siab.



Khoom zoo

1. Cov khoom zoo: Cov khoom siv carbide xaiv ua rau lub zeb no muaj qhov zoo ntawm kev hnav tsis kam, corrosion kuj, kub tsis kam, thiab lwm yam, uas tuaj yeem txhim kho kev ua haujlwm zoo thiab lub neej ntawm cov cuab yeej.

2. High toughness: Cov cuab yeej no muaj cov qauv tsim tsim nyog thiab kev ua haujlwm siab, thiab tuaj yeem tiv taus cov teebmeem ntawm kev kub ceev, kub kub, siab siab thiab lwm yam sab nraud quab yuam, kom nws cov toughness tau zoo tuaj.

3. High precision: Cov hniav saum npoo ntawm cov cuab yeej no tau ua tiav nrog kev ua haujlwm siab, yog li nws tuaj yeem xyuas kom meej qhov kev ua tiav thiab qhov smoothness ntawm qhov chaw, yog li txo cov txheej txheem ua haujlwm tom ntej.

4. Exquisite tsim: Nws lub cim tiaj tiaj-hauv qab txiav ntug tuaj yeem txo qhov kev tiv thaiv thiab txiav kub, thiab txo qhov poob ntawm kev txiav quab yuam, uas txhais tau tias qhov no2 flutes flat kawg mill tuaj yeem txhim kho cov nyhuv txiav thiab ua haujlwm nrawm.



Spotlight Exhibits





Hoobkas





Product Description



55HRC 2 Flutes Cemented Carbide Square End Zeb





SPECIFICATION	d1	L1	D	L
D1*3*D4*50L	1 hli	3mm ib	4mm ib	50 hli
D1.5*4.5*D4*50L	1.5 hli	4.5mm ib	4mm ib	50 hli
D2*6*D4*50L	2 hli	6mm ib	4mm ib	50 hli
D2.5*7.5*D4*50L	2.5 hli	7.5mm ib	4mm ib	50 hli
D3*9*D4*50L	3mm ib	9mm ib	4mm ib	50 hli
D3.5*10*D4*50L	3.5mm ib	10 hli	4mm ib	50 hli
D4*12*D4*50L	4mm ib	12 hli	4mm ib	50 hli
D4*16*D4*75L	4mm ib	16 hli	4mm ib	75mm ua
D4*20*D4*100L	4mm ib	20 hli	4mm ib	100 hli
D5*15*D5*50L	5mm ua	15 hli	5mm ua	50 hli
D5*20*D5*75L	5mm ua	20 hli	5mm ua	75mm ua
D5*25*D5*100L	5mm ua	25 hli	5mm ua	100 hli
D6*18*D6*50L	6mm ib	18 hli	6mm ib	50 hli
D6*24*D6*75L	6mm ib	24mm ib	6mm ib	75mm ua
D6*30*D6*100L	6mm ib	30 hli	6mm ib	100 hli
D8*24*D8*60L	8mm ib	24mm ib	8mm ib	60 hli
D8*30*D8*75L	8mm ib	30 hli	8mm ib	75mm ua
D8*35*D8*100L	8mm ib	35mm ib	8mm ib	100 hli
D10*30*D10*75L	10 hli	30 hli	10 hli	75mm ua
D10*45*D10*100L	10 hli	45mm ib	10 hli	100 hli
D12*35*D12*75L	12 hli	35mm ib	12 hli	75mm ua
D12*45*D12*100L	12 hli	45mm ib	12 hli	100 hli
D14*45*D14*100L	14mm ib	45mm ib	14mm ib	100 hli
D16*45*D16*100L	16 hli	45mm ib	16 hli	100 hli
D18*45*D18*100L	18 hli	45mm ib	18 hli	100 hli
D20*45*D20*100L	20 hli	45mm ib	20 hli	100 hli
D6*45*D6*150L	6mm ib	45mm ib	6mm ib	150 hli
D8*50*D8*150L	8mm ib	50 hli	8mm ib	150 hli
D10*60*D10*150L	10 hli	60 hli	10 hli	150 hli
D12*60*D12*150L	12 hli	60 hli	12 hli	150 hli
D14*70*D14*150L	14mm ib	70 hli	14mm ib	150 hli
D16*75*D16*150L	16 hli	75mm ua	16 hli	150 hli
D18*75*D18*150L	18 hli	75mm ua	18 hli	150 hli
D20*75*D20*150L	20 hli	75mm ua	20 hli	150 hli



Kev kam rau siab
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045





Daim ntawv thov
Carbon Steel Hlau alloy	Pre-harden steel	High-hardened				Stainless hlau	Tooj Alloy	Aluminium Alloy
	45 HRC	50 HRC	55 HRC	60 HRC	65 HRC
○	○	√	√			○	○	○



Pom zoo Parameters



Khoom siv	Carbon Steel, Alloy Steel, S45C, FC, FCD, SCM, S50C, SKS ...		Alloy Steel, Khoom Hlau SCR, SNCM, SKD11, SKD61.NAK80		Hard Steel, SKD11
Hardness	HRC 30		HRC 50		HRC 60
Txoj kab uas hla	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)
1 hli	22000	400	18000	200	9000	140
1.5 hli	12000	500	11000	280	5200	150
2 hli	10000	550	10000	280	4600	170
3mm ib	9000	600	5500	310	3500	220
4mm ib	6000	750	5000	400	2200	220
5mm ua	4800	800	4000	400	1700	240
6mm ib	4500	820	3800	420	1600	300
8mm ib	3500	820	2800	420	1000	300
10 hli	3000	820	1800	420	900	300
12 hli	2000	820	1600	350	800	300
16 hli	1500	650	1000	300	500	150
20 hli	1200	650	900	300	400	150





Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO BLACK
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)

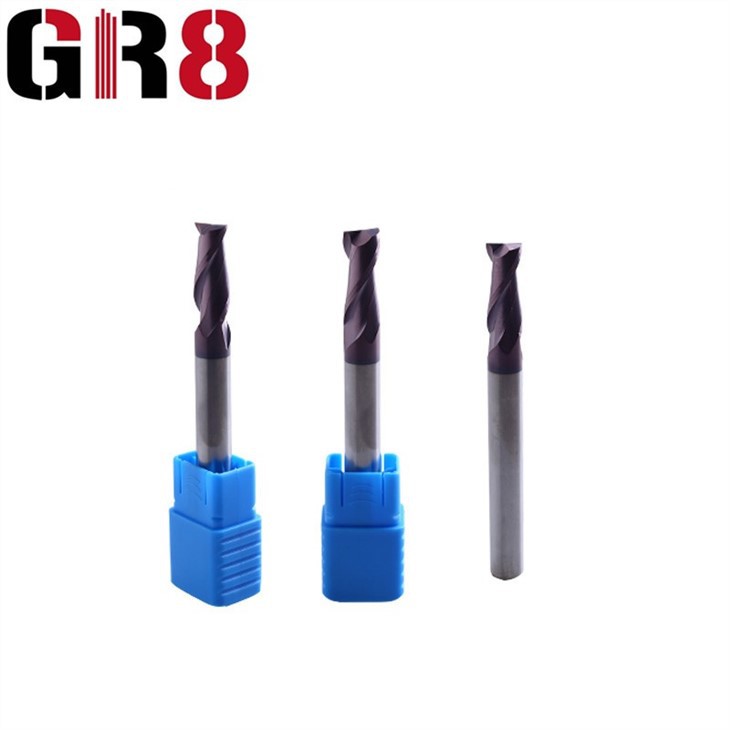

Cov duab ntxaws





2 Flutes ca Carbide txiav cov cuab yeej	2 Flutes Carbide milling cutter	2 Flutes Carbide tiaj tus cutter





Peb Qhov Zoo



1) Tag nrho cov nqe lus them nqi txhawb nqa
2) Lub sijhawm xa khoom sai thiab kev thauj mus los yooj yim
3) Ntau tshaj 2000 cov khoom muaj
4) Rau koj cov lus qhia lossis kev tsis txaus siab, Peb yuav daws lawv sai sai





Ntim





FAQ



1. Koj puas yog cov chaw tsim khoom? Koj puas muaj lub Hoobkas?

Peb yog cov chaw tsim khoom. Peb lub Hoobkas nyob hauv Changzhou City, Jiangsu Province. Nyob ze heev rau Shanghai. Txais tos tuaj xyuas peb lub Hoobkas!



2. Koj siv lub tshuab dab tsi?

Peb muaj 5-axis tsis siv neeg CNC sib tsoo tshuab los ntawm txawv teb chaws, Walter los ntawm lub teb chaws Yelemees, ANCA los ntawm Australia thiab Sab saum toj ua hauj lwm los ntawm Taiwan.



3. Puas muaj shipping dawb?

Peb tsis pub dawb shipping, tab sis peb yuav muab qee qhov luv nqi rau koj yog tias koj yuav hauv ntau.



4. Koj puas tuaj yeem xa cov khoom tuaj rau peb tus neeg xa khoom hauv Suav teb?

Yog lawm, yog tias koj muaj tus neeg xa khoom hauv Suav teb, peb tuaj yeem xa tuaj rau lawv.



5. Yuav ua li cas txog lub sijhawm khoom xa tuaj?

Lub sij hawm xa tuaj txawv ntawm qhov loj thiab qhov ntau. Feem ntau yog 3-10 hnub.
