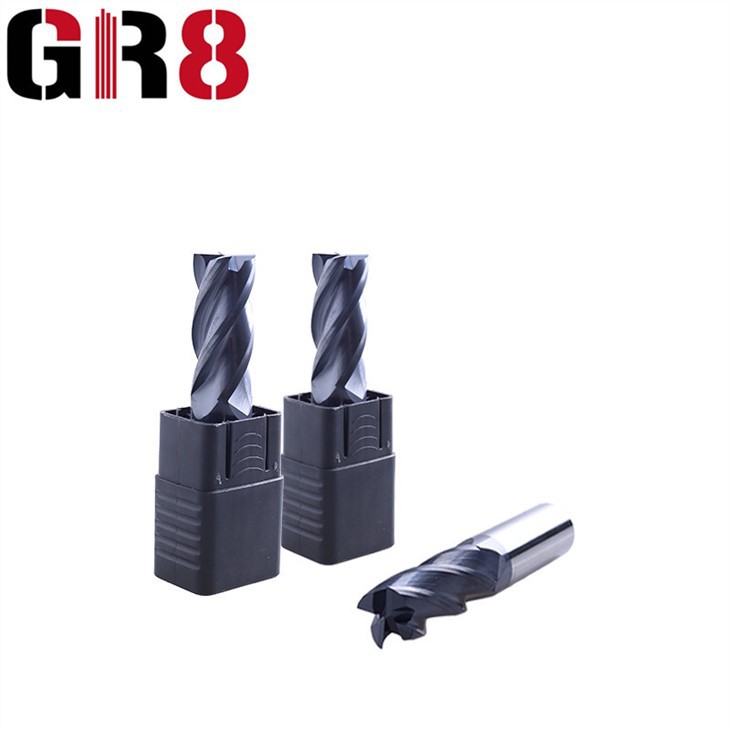

45HRC 4 Flutes Flat End Zeb

Qhov no 45HRC 4 flutes ca kawg zeb yog ua los ntawm cov carbide zoo nrog zoo hardness, toughness thiab hnav tsis kam rau lub neej ntev kev pab cuam. Nws muaj Rockwell hardness scale ntawm tsawg kawg yog 45HRC, yog li nws ua kom muaj kev ua tau zoo txawm tias nyob rau hauv kev thov siv xws li kub thiab siab. Nws 4-flute tsim muaj 4 flutes strategically muab tso rau ib ncig ntawm lub circumference ntawm lub cutter nrog ib tug helix kaum ntawm 35-45 degrees. Qhov kev teeb tsa no tso cai rau lub zeb txiav cov khoom siv tau zoo dua vim tias cov flutes tshem tawm cov chips thiab cov khib nyiab zoo dua, txo qhov muaj feem cuam tshuam los yog puas tsuaj. Tsis tas li ntawd, qhov kev tsim no tso cai rau kev pub noj ntau dua, lub sij hawm txiav nrawm dua thiab ua kom zoo dua. Tsis tas li ntawd, lub zeb no nta TiAlN (Titanium Aluminium Nitride) txheej uas muab superior hardness, hnav tsis kam thiab oxidation kuj. Cov txheej kuj txo cov kev sib txhuam thiab cov cua sov tsim, txhim kho lub neej ntawm cov cuab yeej thiab txiav kev ua haujlwm. Zoo siab txais tos cov neeg siv khoom xav tau tuaj tham txog kev koom tes nrog peb!



Nta

1. Qhov txiav ntug ntawm lub tiaj tiaj tiaj tiaj tiaj tiaj tiaj yog li nws tuaj yeem ua kom raug txiav thiab tsim cov hauv qab tiaj tiaj xws li cov qhov, grooves thiab kab noj hniav. Qhov kev tsim no tseem ua kom qhov chaw sib cuag ntawm lub cuab yeej thiab cov khoom ua haujlwm tau ua kom tiav, txo qhov muaj peev xwm ntawm kev sib tham, kev vibration lossis deflection.

2. Lub tiaj tus kawg zeb no muaj ntau yam siv tau ntau yam thiab muaj txiaj ntsig zoo vim nws tuaj yeem siv rau tshuab ntau yam khoom xws li txhuas, tooj liab, hlau alloy thiab stainless hlau.

3. Qhov no high-hardness45 HRC 4flutes flat kawg zebyog ua los ntawm cov cemented carbide, yog li nws tuaj yeem tiv taus hnav thiab deformation zoo dua, thiab tswj kev txiav ntev ntev.

4. Nws lub taub hau tiaj tus tsim tuaj yeem siv rau ntau yam kev xav tau, xws li lub ntsej muag milling, inclined lub ntsej muag milling, ua cov npoo thiab cov ces kaum, thiab lwm yam. Yog li ntawd, nws tuaj yeem siv los ua ntau yam ntawm cov khoom ua haujlwm, xws li pwm, siv machinery, pib qhov chaw, thiab lwm yam.



Spotlight Exhibits





Hoobkas





Product Description







SPECIFICATION	d1	L1	D	L
D1*3*D4*50L	1 hli	3mm ib	4mm ib	50 hli
D1.5*4.5*D4*50L	1.5 hli	4.5mm ib	4mm ib	50 hli
D2*6*D4*50L	2 hli	6mm ib	4mm ib	50 hli
D2.5*7.5*D4*50L	2.5 hli	7.5mm ib	4mm ib	50 hli
D3*9*D4*50L	3mm ib	9mm ib	4mm ib	50 hli
D3.5*10*D4*50L	3.5mm ib	10 hli	4mm ib	50 hli
D4*12*D4*50L	4mm ib	12 hli	4mm ib	50 hli
D4*16*D4*75L	4mm ib	16 hli	4mm ib	75mm ua
D4*20*D4*100L	4mm ib	20 hli	4mm ib	100 hli
D5*15*D5*50L	5mm ua	15 hli	5mm ua	50 hli
D5*20*D5*75L	5mm ua	20 hli	5mm ua	75mm ua
D5*25*D5*100L	5mm ua	25 hli	5mm ua	100 hli
D6*18*D6*50L	6mm ib	18 hli	6mm ib	50 hli
D6*24*D6*75L	6mm ib	24mm ib	6mm ib	75mm ua
D6*30*D6*100L	6mm ib	30 hli	6mm ib	100 hli
D8*24*D8*60L	8mm ib	24mm ib	8mm ib	60 hli
D8*30*D8*75L	8mm ib	30 hli	8mm ib	75mm ua
D8*35*D8*100L	8mm ib	35mm ib	8mm ib	100 hli
D10*30*D10*75L	10 hli	30 hli	10 hli	75mm ua
D10*45*D10*100L	10 hli	45mm ib	10 hli	100 hli
D12*35*D12*75L	12 hli	35mm ib	12 hli	75mm ua
D12*45*D12*100L	12 hli	45mm ib	12 hli	100 hli
D14*45*D14*100L	14mm ib	45mm ib	14mm ib	100 hli
D16*45*D16*100L	16 hli	45mm ib	16 hli	100 hli
D18*45*D18*100L	18 hli	45mm ib	18 hli	100 hli
D20*45*D20*100L	20 hli	45mm ib	20 hli	100 hli
D6*45*D6*150L	6mm ib	45mm ib	6mm ib	150 hli
D8*50*D8*150L	8mm ib	50 hli	8mm ib	150 hli
D10*60*D10*150L	10 hli	60 hli	10 hli	150 hli
D12*60*D12*150L	12 hli	60 hli	12 hli	150 hli
D14*70*D14*150L	14mm ib	70 hli	14mm ib	150 hli
D16*75*D16*150L	16 hli	75mm ua	16 hli	150 hli
D18*75*D18*150L	18 hli	75mm ua	18 hli	150 hli
D20*75*D20*150L	20 hli	75mm ua	20 hli	150 hli



Kev kam rau siab
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045



Daim ntawv thov
Carbon Steel Hlau alloy	Pre-harden steel	High-hardened				Stainless hlau	Tooj Alloy	Aluminium Alloy
	45 HRC	50 HRC	55 HRC	60 HRC	65 HRC
○	○	√	√			○	○	○

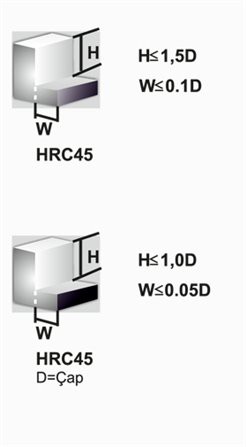

Pom zoo Parameters



Khoom siv	Carbon Steel, Alloy Steel, S45C, FC, FCD, SCM, S50C, SKS ...		Alloy Steel, Tool Steel SCR, SNCM, SKD11, SKD61.NAK80		Hard Steel, SKD11
Hardness	HRC 30		HRC 50		HRC 60
Txoj kab uas hla	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)
1 hli	22000	400	18000	200	9000	140
1.5 hli	12000	500	11000	280	5200	150
2 hli	10000	550	10000	280	4600	170
3mm ib	9000	600	5500	310	3500	220
4mm ib	6000	750	5000	400	2200	220
5mm ua	4800	800	4000	400	1700	240
6mm ib	4500	820	3800	420	1600	300
8mm ib	3500	820	2800	420	1000	300
10 hli	3000	820	1800	420	900	300
12 hli	2000	820	1600	350	800	300
16 hli	1500	650	1000	300	500	150
20 hli	1200	650	900	300	400	150





Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO BLACK
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)



Cov duab ntxaws





2 Flutes ca Carbide txiav cov cuab yeej	2 Flutes Carbide milling cutter	2 Flutes Carbide tiaj tus cutter





Peb Qhov Zoo



1) Tag nrho cov nqe lus them nqi txhawb nqa

2) Lub sijhawm xa khoom sai thiab kev thauj mus los yooj yim

3) Ntau tshaj 2000 cov khoom muaj

4) Rau koj cov lus qhia lossis kev tsis txaus siab, Peb yuav daws lawv sai sai





Ntim





FAQ



1. Koj puas yog cov chaw tsim khoom? Koj puas muaj lub Hoobkas?

Peb yog cov chaw tsim khoom. Peb lub Hoobkas nyob hauv Changzhou City, Jiangsu Province. Nyob ze heev rau Shanghai. Txais tos tuaj xyuas peb lub Hoobkas!



2. Koj siv lub tshuab dab tsi?

Peb muaj 5-axis tsis siv neeg CNC sib tsoo tshuab los ntawm txawv teb chaws, Walter los ntawm lub teb chaws Yelemees, ANCA los ntawm Australia thiab Sab saum toj ua hauj lwm los ntawm Taiwan.



3. Puas muaj shipping dawb?

Peb tsis pub dawb shipping, tab sis peb yuav muab qee qhov luv nqi rau koj yog tias koj yuav hauv ntau.



4. Koj puas tuaj yeem xa cov khoom tuaj rau peb tus neeg xa khoom hauv Suav teb?

Yog lawm, yog tias koj muaj tus neeg xa khoom hauv Suav teb, peb tuaj yeem xa tuaj rau lawv.



5. Yuav ua li cas txog lub sijhawm khoom xa tuaj?

Lub sij hawm xa tuaj txawv ntawm qhov loj thiab qhov ntau. Feem ntau yog 3-10 hnub.
