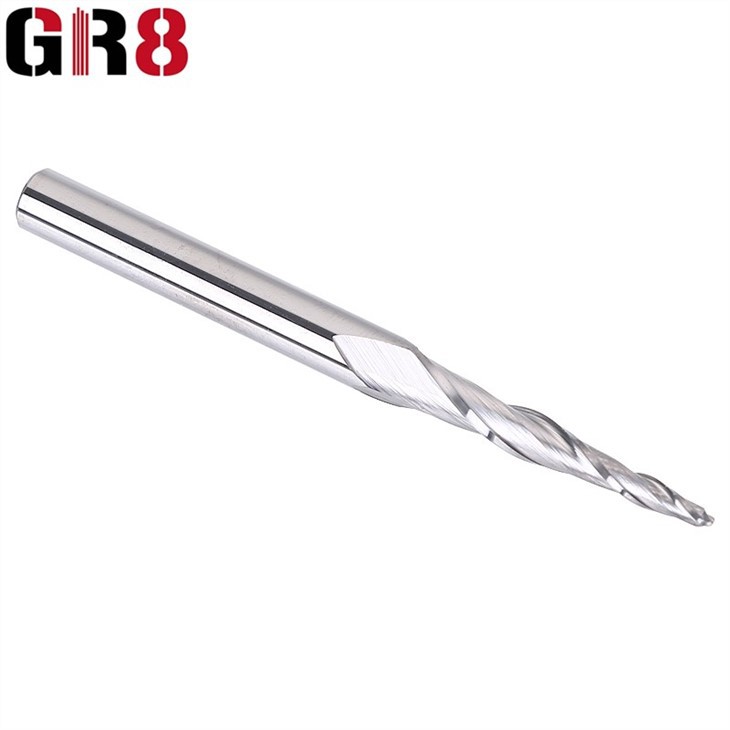

2F Taper Pob Nose Milling Cutter tsis muaj txheej

Qhov no 2F taper pob qhov ntswg milling cutter yam tsis muaj txheej yog ntau yam cuab yeej txiav uas tuaj yeem siv rau hauv ntau yam khoom siv tshuab, chaw tsim khoom. Nws yog tsim los ua kom tiav kev txiav ntau yam khoom siv, suav nrog ntoo, txhuas, yas thiab hlau. Lub pob qhov ntswg cutter no yog ua los ntawm cov carbide zoo, cov khoom siv uas ua kom cov cuab yeej no tuaj yeem tiv taus qhov kev siv txhua hnub thiab xa cov txiaj ntsig zoo raws sijhawm. Nws tapered profile yog tsim los muab qhov siab tshaj plaws thiab qhov tseeb thaum txiav, thaum lub pob-qhov ntswg tsim kom ntseeg tau tias cov cuab yeej tuaj yeem nkag mus tob rau hauv cov ntaub ntawv thiab tsim cov duab thiab cov duab. Cov cuab yeej tsim qauv tsis muaj txheej txheej tsim tuaj yeem txo qhov kev sib txhuam quab yuam ntawm cov cuab yeej thiab cov khoom ua haujlwm sib cuag, txo cov thermal deformation ntawm lub workpiece nto, thiab txhim kho qhov tseeb machining thiab zoo. Yog tias koj tab tom nrhiav rau lub tshuab txiav milling uas txhim kho kev ua haujlwm thiab kev ua haujlwm raug, cov khoom no yog qhov kev daws teeb meem zoo tshaj plaws! Tiv tauj peb tam sim no yog xav paub ntxiv.



Nta:

1. Khoom carbide: Lub pob kawg milling cutter no yog ua los ntawm high-hardness, high-strength cemented carbide cov ntaub ntawv raws li ib tug tag nrho cov qauv, tom qab tshwj xeeb ua technology los xyuas kom meej lub siab precision thiab siab hardness ntawm cov hniav. Yog li nws tuaj yeem txhim kho kev ua haujlwm tau zoo thiab ua kom lub neej ua haujlwm ntev.

2. Cov qauv tsis-txheej: Cov qauv tsis-txheej txheej tuaj yeem tiv thaiv kev sib tsoo ntawm riam lub cev thiab cov hniav, txo oxidation thiab hnav ntawm qhov chaw ntawm lub cuab yeej, yog li txhim kho hnav tsis kam thiab ua rau lub neej ua haujlwm ntawm lub cuab yeej.

3. Lub khob hliav qab thiab pob tsim: Cov qauv tsim ntawm lub khob hliav qab thiab pob tuaj yeem nrhiav tau sai thiab txiav ntau hom workpiece nto, txhim kho machining raug thiab ua haujlwm zoo.

4. Kev ua haujlwm siab: Qhov no2F taper pob qhov ntswg milling cutter tsis muaj cokevmuaj siab hardness thiab siab zog, uas yuav sai sai txiav ntau yam ntaub ntawv thiab txhim kho kev ua hauj lwm efficiency.



Spotlight Exhibits





Hoobkas





Product Description



60HRC Ntoo Ua Khoom Carbide Taper Pob Nose End Zeb





SPECIFICATION	R	L1	D	L
R0.25*15*D4*50L	0.25 hli	15 hli	4mm ib	50 hli
R0.5*15*D4*50L	0.5 hli	15 hli	4mm ib	50 hli
R0.75*15*D4*50L	0.75 hli	15 hli	4mm ib	50 hli
R0.25*20*D6*50L	0.25 hli	20 hli	6mm ib	50 hli
R0.5*20*D6*50L	0.5 hli	20 hli	6mm ib	50 hli
R0.75*20*D6*50L	0.75 hli	20 hli	6mm ib	50 hli
R1*20*D6*50L	1 hli	20 hli	6mm ib	50 hli
R0.25*30.5*D6*75L	0.25 hli	30.5mm ib	6mm ib	75mm ua
R0.5*30.5*D6*75L	0.5 hli	30.5mm ib	6mm ib	75mm ua
R0.75*30.5*D6*75L	0.75 hli	30.5mm ib	6mm ib	75mm ua
R1*30.5*D6*75L	1 hli	30.5mm ib	6mm ib	75mm ua
R1*50*D8*100L	1 hli	50 hli	8mm ib	100 hli
R1.5*50*D8*100L	1.5 hli	50 hli	8mm ib	100 hli
R1*60*D8*120L	1 hli	60 hli	8mm ib	120



Tolerances
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0~-0.02	H6
Φ3-Φ6	-0.01~-0.03
Φ6-Φ10	-0.01~-0.035
Φ10.0-Φ18.0	-0.01~-0.04
Φ18.0-Φ20.0	-0.015~-0.045



Daim ntawv thov
Multilayer Board	MDF	Ntoo Ntoo				EVE daim txhuam cev	Particleboard	Aluminium Alloy
		50 HRC	55 HRC	60 HRC	65 HRC
√	√	√	√				√



Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO DAWB
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)



Cov duab ntxaws





2 Flutes Taper Pob qhov ntswg Carbide cutter	2 Flutes Taper Pob qhov ntswg endmills	2 Flutes Khoom Carbide Taper Pob Qhov ntswg End Mill





Peb Qhov Zoo



1. Ntau xyoo 'kev tsim khoom thiab kev xa tawm

2. Advanced RD department ua tau raws li koj qhov kev thov tshwj xeeb

3. High precision CNC tshuab, siab tus qauv thiab nruj soj ntsuam

4. Kev thov kev cai yog txais tos, OEM thiab ODM Service

5. Tag nrho cov nqe lus them nqi txhawb nqa

6. Lub sijhawm xa khoom sai thiab kev thauj mus los yooj yim

7. Ntau tshaj 2000 khoom muaj

8. Rau koj cov lus qhia lossis kev tsis txaus siab, Peb yuav daws lawv sai sai.





Ntim
