4 Flutes Corner Radius End Mill

Spotlight Exhibits

Kev piav qhia

Hauv kev lag luam niaj hnub no, cov cuab yeej txiav tau zoo yog qhov tseem ceeb heev rau kev ua kom zoo thiab ua haujlwm zoo. Qhov 4 Flutes Corner Radius End Mill yog siv dav hauv ntau qhov chaw vim nws cov khoom siv cemented carbide, fillet radius thiab txheej tshwj xeeb. Nws yog cov cuab yeej txiav tau zoo rau kev ua haujlwm, nrog rau kev tsim tshwj xeeb zawj, uas tuaj yeem muab lub ntsej muag du thaum lub sijhawm ua haujlwm thiab txo lub sijhawm xav tau rau kev ua haujlwm. Tsis tas li ntawd, nws muaj plaub ntu ntu nrog qhov ntev li niaj zaus, uas tuaj yeem ua tiav cov txheej txheem fillet vojvoog nyob rau hauv qab ntawm lub xub pwg nyom thiab txhim kho pub ceev, yog li ua kom lub neej ntev thiab txhim kho kev tsim khoom.



Nta

1. Groove tsim: Qhov 4 Flutes Corner Radius End Mill muaj plaub grooves, uas tuaj yeem ua tiav lub ntsej muag smoother thaum lub sijhawm ua haujlwm. Nyob rau tib lub sijhawm, qhov muaj nyob ntawm qhov zawj kuj tuaj yeem txo lub sijhawm ua haujlwm thiab txhim kho kev tsim khoom.



2. Kev tsim ntawm lub vojvoog fillet: Kev tsim ntawm lub vojvoog fillet ua rau lub tshuab kawg kom ua tiav qhov tseeb dua. Tshwj xeeb tshaj yog thaum soj ntsuam nrog cov ntaub ntawv nyuaj xws li stainless hlau, hardened steel thiab lwm yam alloys, nws muaj peev xwm muab kev txiav txim ntau dua.



3. Tshwj xeeb DLC txheej: Qhov kawg zeb yog coated nrog tshwj xeeb DLC txheej, uas muaj ntau yam txiaj ntsig. Ua ntej, DLC txheej tuaj yeem tiv thaiv corrosion thiab tiv thaiv cov cuab yeej txiav los ntawm ib puag ncig sab nraud. Qhov thib ob, DLC txheej kuj tseem tuaj yeem ua rau lub neej ua haujlwm ntev ntawm cov cuab yeej thiab txo qhov kev pheej hmoo ntawm kev hnav thiab kev puas tsuaj.



4. Kev xaiv ntau qhov loj: nws muab cov kev xaiv ntawm metric thiab British qhov ntau thiab tsawg kom tau raws li cov kev xav tau sib txawv. Qhov kev xaiv ntau qhov loj no ua rau lub cuab yeej hloov tau yooj yim thiab ntau yam.



Daim ntawv thov



• Kev tsim hlau: Hauv kev tsim cov hlau, tshwj xeeb tshaj yog thaum cuam tshuam nrog cov hlau tsis muaj steel, hardened steel thiab lwm yam ntaub ntawv, qhov 4 Flutes Corner Radius End Mill tuaj yeem muab cov kev daws teeb meem zoo thiab ua haujlwm tau zoo.

• Aerospace teb: Cov kev lag luam no yuav tsum muaj kev ua haujlwm siab thiab zoo ntawm qhov chaw, thiab cov khoom ua haujlwm uas tsim los ntawm cov tshuab txiav no muaj cov qauv tshwj xeeb thiab siab precision, uas tuaj yeem ua tau raws li cov kev cai no.

• Machining Rhiav: Nws tuaj yeem ua tau raws li qhov xav tau ntawm cov khoom sib txawv thiab cov haujlwm ua haujlwm, thiab tuaj yeem muab cov txiaj ntsig raug txiav txim siab rau kev tsim cov khoom siv tshuab.





Hoobkas





Product Description





55HRC 4 Flutes Cemented Carbide Corner Raduius End Zeb nrog Txheej





SPECIFICATION	R	d1	L1	D	L
D4*12*D4*50L	R0.1-R0.5/R1	4mm ib	12 hli	4mm ib	50 hli
D4*16*D4*75L	R0.1-R0.5/R1	4mm ib	16 hli	4mm ib	75mm ua
D4*20*D4*100L	R0.1-R0.5/R1	4mm ib	20 hli	4mm ib	100 hli
D5*15*D5*50L	R0.1-R0.5/R1	5mm ua	15 hli	5mm ua	50 hli
D5*20*D5*75L	R0.1-R0.5/R1	5mm ua	20 hli	5mm ua	75mm ua
D5*25*D5*100L	R0.1-R0.5/R1	5mm ua	25 hli	5mm ua	100 hli
D6*18*D6*50L	R0.1-R0.5/R1	6mm ib	18 hli	6mm ib	50 hli
D6*24*D6*75L	R0.1-R0.5/R1	6mm ib	24mm ib	6mm ib	75mm ua
D6*30*D6*100L	R0.1-R0.5/R1	6mm ib	30 hli	6mm ib	100 hli
D8*24*D8*60L	R0.1-R0.5/R1	8mm ib	24mm ib	8mm ib	60 hli
D8*30*D8*75L	R0.1-R0.5/R1	8mm ib	30 hli	8mm ib	75mm ua
D8*35*D8*100L	R0.1-R0.5/R1	8mm ib	35mm ib	8mm ib	100 hli
D10*30*D10*75L	R0.1-R0.5/R1	10 hli	30 hli	10 hli	75mm ua
D10*45*D10*100L	R0.1-R0.5/R1	10 hli	45mm ib	10 hli	100 hli
D12*35*D12*75L	R0.1-R0.5/R1	12 hli	35mm ib	12 hli	75mm ua
D12*45*D12*100L	R0.1-R0.5/R1	12 hli	45mm ib	12 hli	100 hli



Kev kam rau siab
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045



Daim ntawv thov
Carbon Steel Hlau alloy	Pre-harden steel	High-hardened				Stainless hlau	Tooj Alloy	Aluminium Alloy
	45 HRC	50 HRC	55 HRC	60 HRC	65 HRC
○	○	√	√			○	○	○

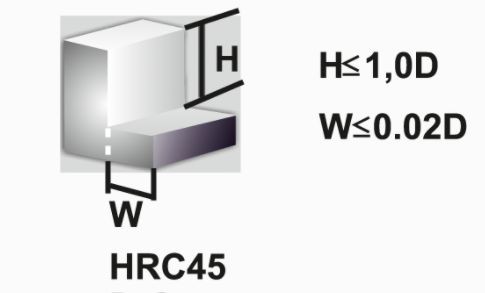

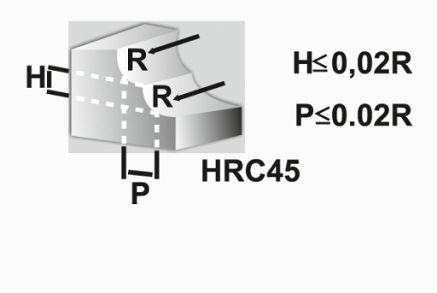

Pom zoo Parameters



Khoom siv	Carbon Steel, Alloy Steel, S45C, FC, FCD, SCM, S50C, SKS ...		Alloy Steel, Tool Steel SCR, SNCM, SKD11, SKD61.NAK80		Hard Steel, SKD11
Hardness	HRC 30		HRC 50		HRC 60
Txoj kab uas hla	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)
1 hli	22000	400	18000	200	9000	140
1.5 hli	12000	500	11000	280	5200	150
2 hli	10000	550	10000	280	4600	170
3mm ib	9000	600	5500	310	3500	220
4mm ib	6000	750	5000	400	2200	220
5mm ua	4800	800	4000	400	1700	240
6mm ib	4500	820	3800	420	1600	300
8mm ib	3500	820	2800	420	1000	300
10 hli	3000	820	1800	420	900	300
12 hli	2000	820	1600	350	800	300
16 hli	1500	650	1000	300	500	150
20 hli	1200	650	900	300	400	150





Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO BLACK
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)

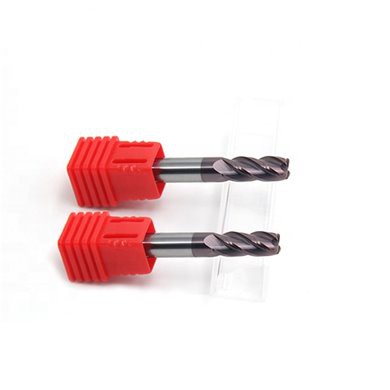

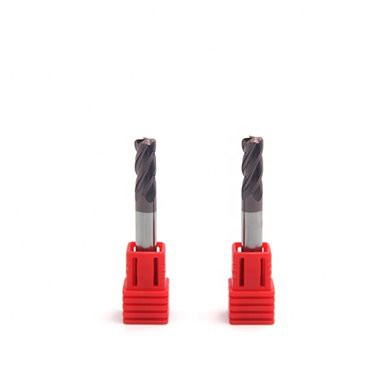

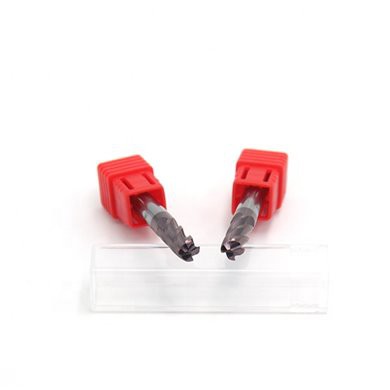

Cov duab ntxaws





4 Flutes Corner Radius milling cutter	4 Flutes Corner Radius Carbide cutter	4 Flutes Corner Radius Carbide milling cutter





Peb Qhov Zoo



1. Tom qab tau txais koj cov lus nug, peb yuav teb rau hauv 12 teev

2. Pls xav tias dawb hu rau kuv txhua lub sijhawm

3. Cov qauv txiav txim yog txais tos

4. Txais tos tuaj xyuas peb lub Hoobkas, peb yuav tuaj tos koj

5. Pls xav tias dawb nug peb daim ntawv teev nqi





Ntim





FAQ



Q1: Lub tuam txhab lossis lub Hoobkas:

A1: Peb yog cov cuab yeej carbide kev koom xwm ntau tshaj 10 xyoo. qhov zoo tshaj plaws tungsten carbide cov cuab yeej tsim khoom yog nyob rau hauv Suav teb.



Q2: Koj tus MOQ yog dab tsi?

A2: Peb zoo siab tos txais koj cov qauv txiav txim los kuaj peb qhov zoo, peb ntseeg tias koj yuav pom tias peb yog tus neeg muag khoom zoo uas koj tab tom nrhiav. yog li tsis muaj MOQ.



Q3: Kuv puas tuaj yeem tau txais koj daim ntawv teev npe?

A3: Yog, paub meej. peb tuaj yeem xa tuaj rau koj ntawm email.



Q4: Kuv tuaj yeem tau txais qhov kev txiav txim ntev npaum li cas

A4: Qauv xaj 1-5 hnub. kev txiav txim loj yuav tsum tau kuaj xyuas, feem ntau yog 15-25 hnub.



Q5: Koj puas tuaj yeem ua cov khoom raws li peb cov duab kos?

A5: Yog lawm, nws zoo, peb muaj cov kws tshaj lij molding department.
