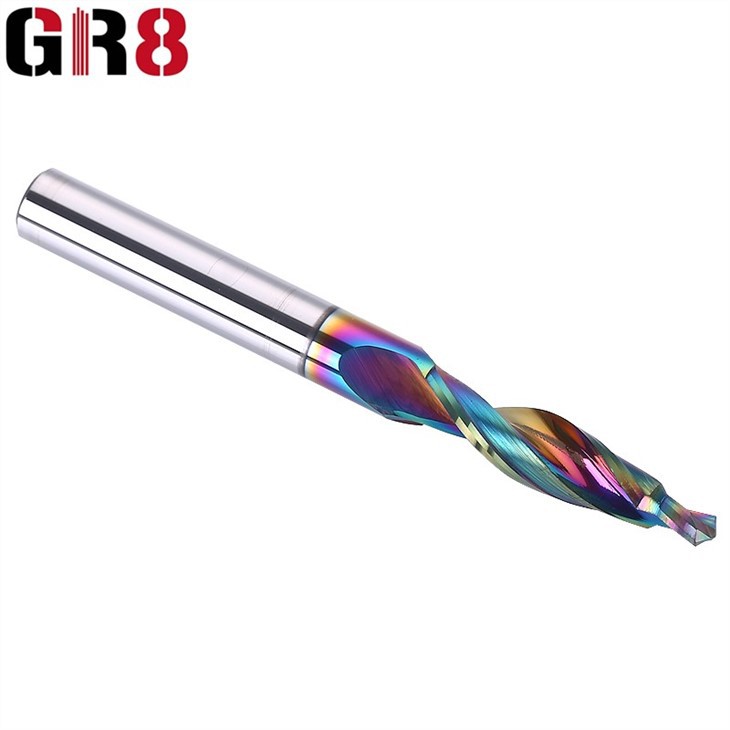

2 Flutes DLC Milling Drills

Spotlight Exhibits

Kev piav qhia

Hauv kev ua haujlwm ntawm cov hlau niaj hnub no, 2 Flutes DLC Milling Drills muaj qhov ua tau zoo tshaj plaws hauv cov ntawv thov hlau nrog nws cov qauv tsim, ntau yam kev xaiv txheej thiab cov yam ntxwv zoo heev. Nws yog cov cuab yeej ua haujlwm siab tshwj xeeb uas tsim los rau kev ua hlau. Nws ob chav zawj tsim thiab ntau yam kev xaiv txheej ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev tshem tawm cov ntaub ntawv, burrs thiab ua kom lub ntsej muag du. Tom qab machining, lub milling cutter muaj peev xwm muab daim iav tiav rau txhuas thiab cov ntaub ntawv zoo sib xws, thiab kuj yog tsim rau machining tooj dag, tooj liab, kub, magnesium, alloys, yas, acrylic acid, PVC thiab lwm yam uas tsis yog-ferrous hlau, ua rau nws ib tug nrov txiav. cuab yeej.



Nta

1. Hlau ua daim ntawv thov: 2 Flutes DLC Milling Drills yog ua los ntawm cov khoom siv zoo carbon alloy, uas muaj cov yam ntxwv ntawm hardness, compact qauv thiab lwm yam. Nws muaj kev txiav ceev ceev thiab feem ntau yog siv rau kev siv hlau ua. Nws tuaj yeem tshem tawm cov ntaub ntawv los ntawm cov khoom ua haujlwm zoo, thaum tawm hauv qhov chaw du thiab tswj qhov smoothness ntawm lub workpiece.



2. Ntau yam kev xaiv txheej: Lub milling cutter muab ntau yam txheej txheej, suav nrog titanium nitride (TiN), titanium carbonitride (TiCN), titanium aluminium nitride (TiAlN lossis AlTiN) thiab pob zeb diamond veneer. Cov coatings no tuaj yeem muab kev hnav ntxiv, lubricity thiab thermal stability, ua cov cuab yeej ua tau zoo nyob rau hauv cov khoom sib txawv thiab kev ua haujlwm.



3. Kev xaiv ntau yam kev qhia tshwj xeeb: Nws muab cov kev xaiv ntawm tus qauv thiab metric shank thiab txiav txoj kab uas hla, uas yog tsim rau kev ua haujlwm sib txawv, tshwj xeeb tshaj yog rau cov khoom siv hluav taws xob ua haujlwm siab.



4. Kev tshem tawm cov hlau kom zoo: Nws qhov kev tsim ob-groove ua rau lub milling laum kom tshem tawm cov ntaub ntawv los ntawm qhov chaw ua haujlwm thiab txhim kho kev ua haujlwm zoo. Nyob rau tib lub sijhawm, nws tuaj yeem ua kom lub peev xwm ntawm nti tshem tawm thiab zam lub sijhawm poob vim los ntawm nti thaiv.





Hoobkas





Product Description







SPECIFICATION	d1	L1	D	L
D4*5*D8*70L	4mm ib	5mm ua	8mm ib	70 hli
D4.2*5*D8*70L	4.2mm ib	5mm ua	8mm ib	70 hli
D4.5*5*D8*70L	4.5mm ib	5mm ua	8mm ib	70 hli
D4*6*D8*80L	4mm ib	6mm ib	8mm ib	80 hli
D4.1*6*D8*80L	4.1mm ib	6mm ib	8mm ib	80 hli
D4.2*8*D8*80L	4.2mm ib	8mm ib	8mm ib	80 hli
D4.5*8*D8*80L	4.5mm ib	8mm ib	8mm ib	80 hli
D4.5*8*D10*100L	4.5mm ib	8mm ib	8mm ib	100 hli
D4.8*8*D10*100L	4.8mm ib	8mm ib	8mm ib	100 hli



Tolerances
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045



Daim ntawv thov
Carbon Steel Hlau alloy	Pre-harden steel	High-hardened				Stainless hlau	Tooj Alloy	Aluminium Alloy
	45 HRC	50 HRC	55 HRC	60 HRC	65 HRC
								○



Pom zoo Parameters



Khoom siv	Carbon Steel, Alloy Steel, S45C, FC, FCD, SCM, S50C, SKS ...		Alloy Steel, Tool Steel SCR, SNCM, SKD11, SKD61.NAK80		Hard Steel, SKD11
Hardness	HRC 30		HRC 50		HRC 60
Txoj kab uas hla	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)	Txiav ceev (VC) (mm{0}})	Pub (F) (mm-min)
1 hli	22000	400	18000	200	9000	140
1.5 hli	12000	500	11000	280	5200	150
2 hli	10000	550	10000	280	4600	170
3mm ib	9000	600	5500	310	3500	220
4mm ib	6000	750	5000	400	2200	220
5mm ua	4800	800	4000	400	1700	240
6mm ib	4500	820	3800	420	1600	300
8mm ib	3500	820	2800	420	1000	300
10 hli	3000	820	1800	420	900	300
12 hli	2000	820	1600	350	800	300
16 hli	1500	650	1000	300	500	150
20 hli	1200	650	900	300	400	150





Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO BLACK
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)

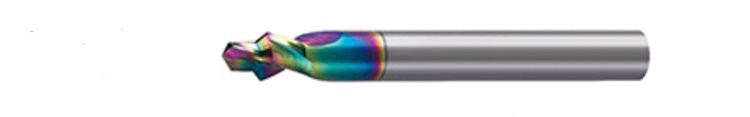

Cov duab ntxaws





2 Flutes DLC milling xyaum	2 Flutes DLC Cemented Carbide xyaum	2 Flutes DLC Khoom Carbide xyaum





Peb Qhov Zoo







Ntim





FAQ



1.Koj puas yog cov chaw tsim khoom lossis tuam txhab lag luam?

Peb yog cov chaw tsim khoom nrog tus kheej export & ntshuam daim ntawv tso cai. Ntau tshaj 10 xyoo exporting kev.



2.Koj siv lub tshuab cnc dab tsi?

Ntau tshaj 10 pcs ANCA, Walter CNC zom cov cav tov, thiab cov neeg ua haujlwm ua haujlwm kom paub tseeb tias qhov zoo, nrog lub sijhawm luv luv.



3.Koj puas tuaj yeem xa cov khoom xa tuaj rau peb tus xa khoom hauv Suav teb?

Yog lawm, nrog peb txaus siab xa cov khoom rau koj tus neeg xa khoom hauv Suav teb.



Cim npe nrov: 2 flutes dlc milling xyaum, Tuam Tshoj 2 flutes dlc milling laum manufacturers, lwm tus neeg, Hoobkas
