3 Flutes Roughing End Zeb

Qhov no 3 flutes roughing kawg zeb yog tsim los nrog advanced 4-axis sib tsoo tshuab los xyuas kom meej tias txhua qhov zawj thiab cov hniav raug txiav nrog qhov siab tshaj plaws. Nws yog ua los ntawm high-zoo carbide, yog li nws muaj zoo heev durability thiab kev pab lub neej. Qhov no txhais tau tias peb cov khoom yuav tsis hnav los yog degrade yooj yim, uas yog ib qho tseem ceeb rau cov lag luam nrhiav muab lawv cov neeg muas zaub nrog cov khoom zoo nyob rau lub sij hawm ntev. Qhov kawg zeb no tuaj yeem muab kev ua haujlwm du vim tias nws tau tsim tshwj xeeb rau kev ua haujlwm siab ceev, uas tuaj yeem ua tiav kev ua haujlwm zoo, txo cov chips thiab txhim kho tag nrho cov milling zoo. Nws tuaj yeem siv rau ntau yam kev siv, txawm tias roughing, xov los yog kev sib sau, nws muab cov txiaj ntsig zoo txhua lub sijhawm. Los ntawm kev xaiv peb cov mills kawg, cov neeg siv khoom tuaj yeem txuag cov nqi milling yam tsis muaj kev txi zoo, yog li ua tiav qhov kev yeej-yeej. Zoo siab txais tos cov neeg siv khoom xav tau tuaj tham txog kev koom tes nrog peb!



Khoom zoo

1. Nyob rau hauv tus txheej txheem ntawm kev ua hardwood, no high-hardness kawg zeb tsis yog ib qho yooj yim mus hnav, muaj ib tug ntev kev pab cuam lub neej, thiab muaj peev xwm tswj tau high precision thiab stability.

2. Vim yog siv cov khoom siv high-hardness carbide thiab zoo heev ntug tsim, qhov kawg zeb no tuaj yeem txo cov quab yuam thiab nto roughness, thiab tib lub sij hawm ua rau saum npoo ntawm lub workpiece siab dua.

3. Qhov no3 flutes roughing kawg mill muaj lub neej ua haujlwm ntev, uas tuaj yeem txo cov nqi tsim khoom thiab qhov zaus ntawm cov cuab yeej hloov pauv.

4. Qhov kawg zeb no yog tshwj xeeb tshaj yog tsim rau kev ua cov ntaub ntawv hardwood nrog siab hardness, xws li ntoo qhib, catalpa, teak thiab mahogany, thiab lwm yam. Nws tuaj yeem ua lub luag haujlwm zoo hauv kev tsim cov rooj tog ntoo, cov plag tsev, qhov rooj, qhov rais thiab rooj.

5. Nws cov high-precision txiav muaj peev xwm thiab siab txiav efficiency tuaj yeem txhim kho kev ua tau zoo thiab cov khoom lag luam zoo, tsim cov khoom siv ntau dua thiab cov nqi ntxiv.



Spotlight Exhibits





Hoobkas





Product Description



60 HRC Khoom Carbide Roughing End Zeb rau Ntoo Ntoo

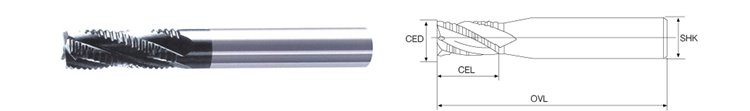

SPECIFICATION	d1	L1	D	L
D3.175*12*D3.175*38L	3, 175 mm	12 hli	3, 175 mm	38L
D3.175*17*D3.175*38L	3, 175 mm	17mm ib	3, 175 mm	38L
D3.175*22*D3.175*45L	3, 175 mm	22 hli	3, 175 mm	45L
D3.175*25*D3.175*45L	3, 175 mm	25 hli	3, 175 mm	45L
D4*17*D4*50L	4mm ib	17mm ib	4mm ib	50L
D4*22*D4*50L	4mm ib	22 hli	4mm ib	50L
D4*25*D4*50L	4mm ib	25 hli	4mm ib	50L
D4*32*D4*60L	4mm ib	32mm ib	4mm ib	60L
D6*17*D6*50L	6mm ib	17mm ib	6mm ib	50L
D6*22*D6*50L	6mm ib	22 hli	6mm ib	50L
D6*25*D6*50L	6mm ib	25 hli	6mm ib	50L
D6*32*D6*60L	6mm ib	32mm ib	6mm ib	60L
D6*42*D6*70L	6mm ib	42mm ib	6mm ib	70L
D6*52*D6*80L	6mm ib	52mm ua	6mm ib	80L
D6*62*D6*90L	6mm ib	62mm ib	6mm ib	90L
D8*25*D8*60L	8mm ib	25 hli	8mm ib	60L
D8*32*D8*60L	8mm ib	32mm ib	8mm ib	60L
D8*42*D8*70L	8mm ib	42mm ib	8mm ib	70L
D8*52*D8*80L	8mm ib	52mm ua	8mm ib	80L
D8*62*D8*90L	8mm ib	62mm ib	8mm ib	90L
D10*32*D10*75L	10 hli	32mm ib	10 hli	75L
D10*42*D10*85L	10 hli	42mm ib	10 hli	85L
D10*62*D10*95L	10 hli	62mm ib	10 hli	95L



Tolerances
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045



Daim ntawv thov
Multilayer Board	MDF	Ntoo Ntoo				EVE daim txhuam cev	Particle board	Aluminium Alloy
	/	50 HRC	55 HRC	60 HRC	65 HRC
○	○	√	√	√				○



Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO DAWB
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)

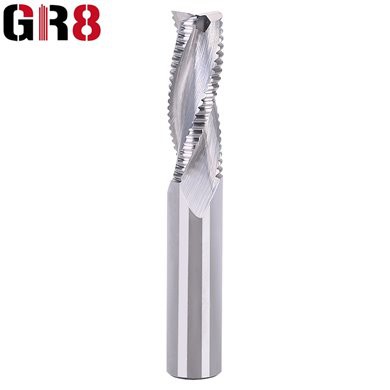

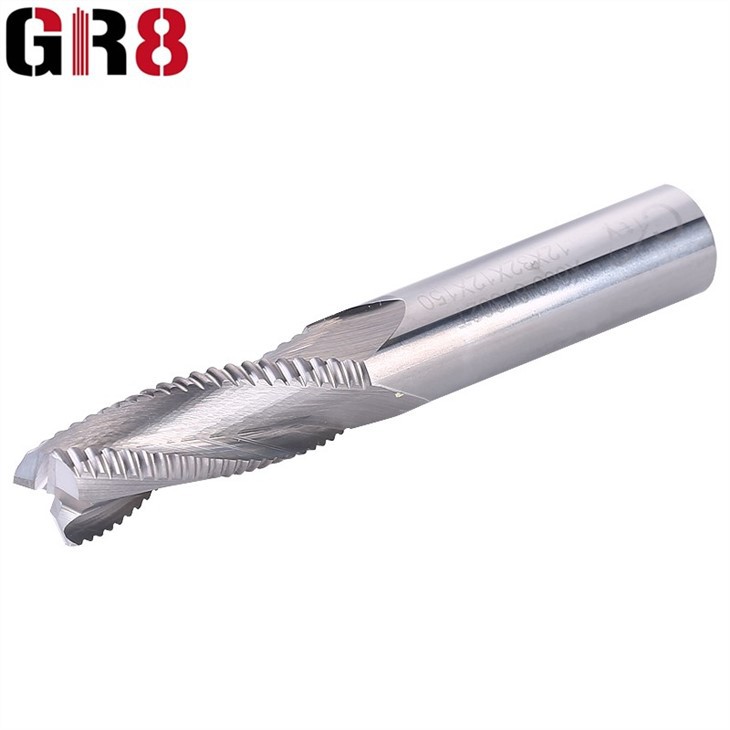

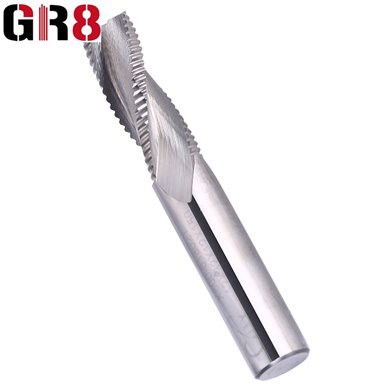

Cov duab ntxaws





3 Flutes Roughing milling cutter	3 Flutes Roughing Carbide cutter	3 Flutes Roughing Carbide milling cutter





Peb Qhov Zoo



1. Tag nrho peb cov khoom tsis yog tsuas yog siv cov khoom lag luam paub zoo uas tsim los ntawm tsev thiab aboard,

2. Peb muaj ib tug series ntawm ntau lawm thiab ua equipments thiab precision xeem cov cuab yeej rau guaranteed zoo.





Ntim





FAQ



Q1. Koj cov nqe lus them nqi yog dab tsi?

A: T / T 30% tso nyiaj, thiab 70% ua ntej xa khoom. Peb mam li qhia koj cov duab ntawm cov khoom thiab pob khoom ua ntej koj ua cov nyiaj seem.



Q2. Koj cov nqe lus ntawm kev xa khoom yog dab tsi?

A: EXW, FOB, CFR, CIF, ETC.



Q3. Yuav ua li cas txog koj lub sijhawm xa khoom?

A: Feem ntau, Nws yuav siv sijhawm 10-15 hnub tom qab tau txais koj cov nyiaj them ua ntej.

Lub sijhawm xa khoom tshwj xeeb nyob ntawm cov khoom thiab qhov ntau ntawm koj qhov kev txiav txim.



Q4. Koj puas muab cov qauv? puas yog dawb los yog ntxiv?

A: Yog lawm, peb tuaj yeem muab peb cov qauv coj mus kuaj dawb thiab koj thov them tus nqi thauj khoom.

Kev cai txiav cov cuab yeej sib tham ces peb yuav hais qhov zoo tshaj plaws qauv nqi.
