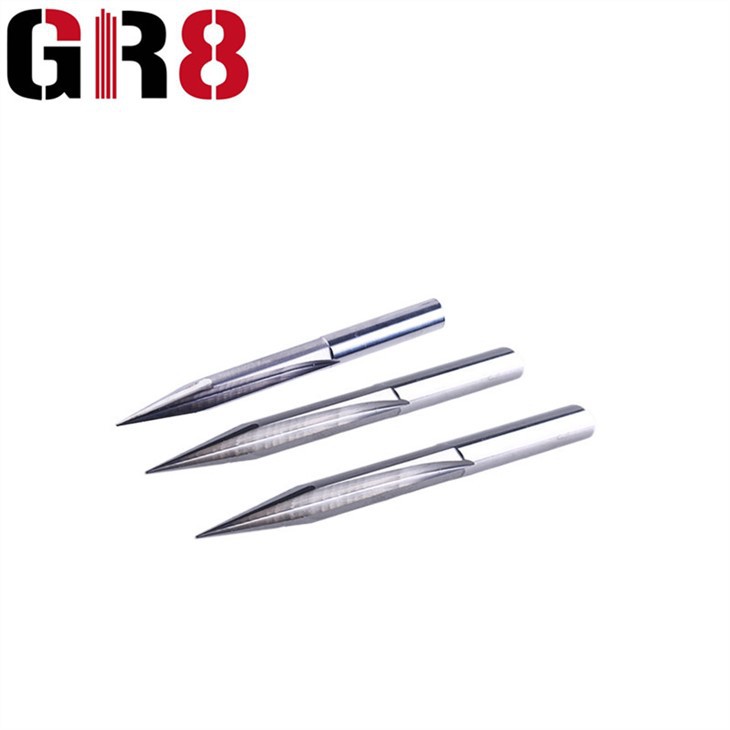

Ncaj Flutes Engraving End Mills

Spotlight Exhibits

Kev piav qhia

No Ncaj Flutes Engraving End Mills yog cov cuab yeej ua haujlwm siab tshwj xeeb uas tsim los rau cov ntawv txiav txhuas. Nws txoj kev ncaj ntug tsim thiab cov cuab yeej tshwj xeeb ua rau nws yog ib qho cuab yeej rau kev txiav txiav, uas tuaj yeem muab cov kev txiav txiav nruab nrab thiab ua kom muaj zog txiav ntau dua li qhov zawj zawj. Lub milling cutter yog siv rau milling yas, epoxy resin thiab iav composite cov ntaub ntawv, thiab kuj rau tshwj xeeb luam milling daim ntaub ntawv. Tsis tas li ntawd, qhov ncaj zawj tsim ntawm nws lub laum me ntsis tuaj yeem txo qis ntawm ntug hnav thiab muab qhov zoo nkauj tiav dua li cov kauv universal kawg zeb, muab koj cov kev daws teeb meem zoo thiab kev txiav txim siab.



Nta

1. Ntau qhov kev xaiv loj: Qhov Ncaj Ncaj Flutes Engraving End Mills muab ntau qhov kev xaiv loj los hloov mus rau ntau yam kev siv txiav, ua tau raws li cov txheej txheem sib txawv, thiab ua kom muaj ntau yam.



2. Cov txheej txheem kev sib tsoo tag nrho: Lub tshuab txiav milling yog ua tiav los ntawm kev sib tsoo tag nrho los xyuas kom meej nws qhov loj me thiab siab precision, xyuas kom meej txiav cov nyhuv thiab txhim kho machining zoo.



3. Qhib nti tshem tawm zawj tsim: Nws txais yuav qhib nti tshem tawm zawj tsim los txhim kho cov nti tshem tawm cov nyhuv. Qhov kev tsim no tuaj yeem txo qhov kev pheej hmoo ntawm nti tsub zuj zuj, ua kom lub cuab yeej huv si thiab xyuas kom meej qhov kev txiav.



4. Nto polishing: Tom qab polishing nto, qhov kev sib txhuam coefficient yog txo, qhov kev sib txhuam poob thaum txiav yog txo, thiab lub tshuab dhos efficiency zoo dua.



Peb qhov kev pabcuam

• Kev tshuaj xyuas ntawm qhov chaw rau tag nrho cov txheej txheem, cov ntaub ntawv tshuaj xyuas tuaj yeem taug qab tau 3 xyoos.

• Txhua tus neeg soj ntsuam tau paub zoo hauv daim ntawv pov thawj thoob ntiaj teb.

• Tsim nyog WPS thiab cov kws welders ua kom cov vuam zoo.

• 100% kev soj ntsuam cov khoom tiav ua ntej xa khoom.

• Tsis tu ncua cob qhia cov neeg soj ntsuam.



Daim ntawv thov





Hoobkas





Product Description



Khoom Carbide Engraving End Mills Cutter Cov Khoom Siv rau Aluminium Cov Khoom Siv Ua Haujlwm





SPECIFICATION	T	2A	D	L
T1 * D6 * 50L * 20 degree	1 hli	20 degree	6mm ib	50 hli
T1 * D6 * 50L * 25 degree	1 hli	25 degree	6mm ib	50 hli
T1 * D6 * 50L * 30 degree	1 hli	30 degree	6mm ib	50 hli
T2 * D6 * 50L * 20 degree	2 hli	20 degree	6mm ib	50 hli
T2 * D6 * 50L * 25 degree	2 hli	25 degree	6mm ib	50 hli
T2 * D6 * 50L * 30 degree	2 hli	30 degree	6mm ib	50 hli
T1 * D6 * 70L * 20 degree	1 hli	20 degree	6mm ib	70 hli
T1 * D6 * 70L * 25 degree	1 hli	25 degree	6mm ib	70 hli
T1 * D6 * 70L * 30 degree	1 hli	30 degree	6mm ib	70 hli
T2 * D6 * 70L * 20 degree	2 hli	20 degree	6mm ib	70 hli
T2 * D6 * 70L * 25 degree	2 hli	25 degree	6mm ib	70 hli
T2 * D6 * 70L * 30 degree	2 hli	30 degree	6mm ib	70 hli
T1 * D6 * 80L * 20 degree	1 hli	20 degree	6mm ib	80 hli
T1 * D6 * 80L * 25 degree	1 hli	25 degree	6mm ib	80 hli
T1 * D6 * 80L * 30 degree	1 hli	30 degree	6mm ib	80 hli
T2 * D6 * 80L * 20 degree	2 hli	20 degree	6mm ib	80 hli
T2 * D6 * 80L * 25 degree	2 hli	25 degree	6mm ib	80 hli
T2 * D6 * 80L * 30 degree	2 hli	30 degree	6mm ib	80 hli
T1 * D6 * 100L * 20 degree	1 hli	20 degree	6mm ib	100 hli
T1 * D6 * 100L * 25 degree	1 hli	25 degree	6mm ib	100 hli
T1 * D6 * 100L * 30 degree	1 hli	30 degree	6mm ib	100 hli
T2 * D6 * 100L * 20 degree	2 hli	20 degree	6mm ib	100 hli
T2 * D6 * 100L * 25 degree	2 hli	25 degree	6mm ib	100 hli
T2 * D6 * 100L * 30 degree	2 hli	30 degree	6mm ib	100 hli
T1 * D8 * 100L * 20 degree	1 hli	20 degree	8mm ib	100 hli
T1 * D8 * 100L * 25 degree	1 hli	25 degree	8mm ib	100 hli
T1 * D8 * 100L * 30 degree	1 hli	30 degree	8mm ib	100 hli
T2 * D8 * 100L * 20 degree	2 hli	20 degree	8mm ib	100 hli
T2 * D8 * 100L * 25 degree	2 hli	25 degree	8mm ib	100 hli
T2 * D8 * 100L * 30 degree	2 hli	30 degree	8mm ib	100 hli



Tolerances
Flute Diameter	Flute Diameter Tolerance	Shank Diameter kam rau ua
Φ1.0-Φ2.9	0~-0.02	H6
Φ3-Φ6	-0.01~-0.03
Φ6-Φ10	-0.01~-0.035
Φ10.0-Φ18.0	-0.01~-0.04
Φ18.0-Φ20.0	-0.015~-0.045



Daim ntawv thov
Multilayer Board	MDF	Ntoo Ntoo				EVE daim txhuam cev	Particleboard	Aluminium Alloy
		50 HRC	55 HRC	60 HRC	65 HRC
√	√	√	√				√



Raw Material List



Qib	ISO Code	Chemical Compositions (%)		Grain Size (um)	Physial Mechanical Properites (Ntau dua lossis sib npaug)			Txheej
		Wc	Co		Qhov ceev (g / cm3)	Hardness (HRA)	TRS (N / hli 2)
YG10X (50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500	TSI
UF12U (55HRC)	K40	87	12	0.6	14.15	92.3	3900	TSI
AF501 (60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600	NANO BLACK
AF308 (65 HRC)	K05-K10	91	8	0.3	14	93.8	3800	NANO (xim xiav)



Cov duab ntxaws





Ncaj Flutes Engraving milling cutter	Ncaj Flutes Engraving End Mill	Ncaj Flutes Engraving End Mill



Peb Qhov Zoo



1. Kev sib dhos kab ntau lawm, cov txheej txheem siab thiab cov kev cai nruj.

2. Cov cuab yeej kho tau muab

3. Dawb laser npav rau cov cuab yeej thiab lub thawv Muaj

4. Lub sijhawm xa khoom sai thiab kev thauj mus los yooj yim.

5. Peb muaj luv nqi shipping nqi los ntawm peb cov tuam txhab courier.





Ntim





FAQ



1) Puas yog koj lub tuam txhab lag luam lossis tus tsim khoom?

Peb yog cov chaw tsim khoom tshaj lij. Peb tsis tsuas yog muaj peb lub Hoobkas cov cuab yeej, tab sis kuj muaj cov cemented carbide Hoobkas.



2) Koj lub Hoobkas nyob qhov twg?

Peb nyob hauv Suav teb.



3) Kuv tuaj yeem cia siab tias yuav tau txais tus qauv ntev npaum li cas?

Tom qab koj them tus nqi coj mus kuaj thiab xa peb cov ntaub ntawv lees paub, cov qauv yuav npaj xa tuaj hauv 3-7 hnub. Cov qauv yuav raug xa tuaj rau koj ntawm kev nthuav qhia thiab tuaj txog hauv 3-5 hnub ua haujlwm. Koj tuaj yeem siv koj tus kheej tus account los yog them ua ntej yog tias koj tsis muaj tus account.



4) Yuav ua li cas txog koj cov khoom?

Peb muaj cov khoom lag luam ntau hauv Tshuag, hom tsis tu ncua thiab qhov ntau thiab tsawg yog txhua yam hauv Tshuag.



5) Puas muaj kev xa khoom dawb?

Peb tsis muaj kev pabcuam shipping dawb. Peb tuaj yeem muaj luv nqi yog tias koj yuav cov khoom lag luam ntau.
